NSYCRNG126300 Schneider
NSYCRNG126300 Schneider
Opis

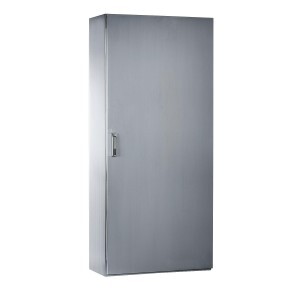

Spacial CRNG plain door w/o mount.plate. H1200xW600xD300 IP66 IK10 RAL7035.
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | compact enclosure |
| product name | Spacial CRNG |
| Skupina izdelkov | Spacial |
| Aplikacija naprave | multi-purpose |
| installation accessory type | wall-mounting |
| device composition | 1 body 1 cable gland plate 1 door 1 lock |
| enclosure nominal height | 1200 mm |
| door type | plain |
| enclosure nominal depth | 300 mm |
| enclosure nominal width | 600 mm |
| Opis montažne plošče | without mounting plate |
| Komplementarno | |
| Teža izdelka | 37.5 kg |
| colour | grey (RAL 7035) |
| product certifications | UL cUL |
| accessibility for operation | front |
| removable parts | door by hinges cable gland plate by screws |
| type of gland plate | standard |
| standards | IEC 62208 |
| Variantna posebnost | single piece body |
| lock type | 3 points lock, 5 mm double-bar |
| door opening side | reversible (120 °) |
| number of doors | front face: 1 door(s) |
| Material | body: steel |
| surface finish | epoxy-polyester powder |
| Okolje | |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| IK stopnja zaščite | IK10 conforming to IEC 62262 |
