NSYPLM32G Schneider Electric
NSYPLM32G Schneider Electric
Opis

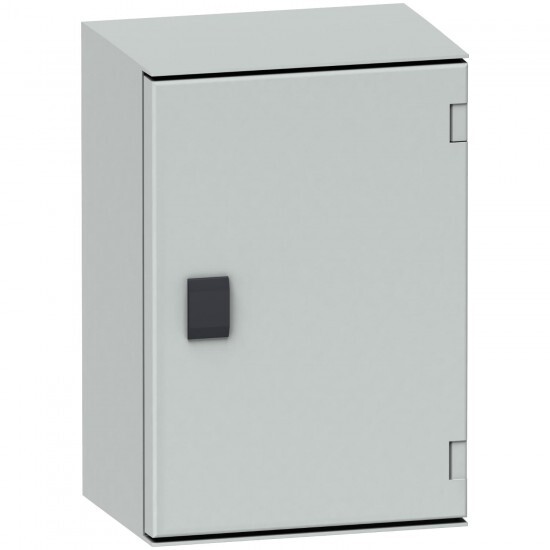

wall-mounting enclosure ABS/PC monobloc IP66 H310xW215xD160mm
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | compact enclosure |
| product name | Thalassa PLM |
| Skupina izdelkov | Thalassa |
| Aplikacija naprave | multi-purpose |
| Kratko ime naprave | PLM |
| device composition | 1 body 1 door 1 lock |
| enclosure nominal height | 310 mm |
| door type | plain |
| enclosure nominal depth | 160 mm |
| enclosure nominal width | 215 mm |
| body type | built-in canopy one piece moulded with notches in the rear |
| enclosure mounting | wall mounted |
| lock type | 3 mm double-bar lock |
| Komplementarno | |
| colour | grey (RAL 7035) |
| product certifications | UL |
| accessibility for operation | front |
| removable parts | door by hinges |
| standards | NEMA classification 4X IEC 62208 NEMA classification 13 |
| Material | ABS + PC |
| mounting plate description | without mounting plate |
| number of locks | 1 |
| Okolje | |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -35-90 °C |
| IK stopnja zaščite | IK10 conforming to IEC 62262 |
| fire resistance | 960 °C conforming to IEC 62208 |
