MGU3.525.18 Schneider
MGU3.525.18 Schneider
Opis

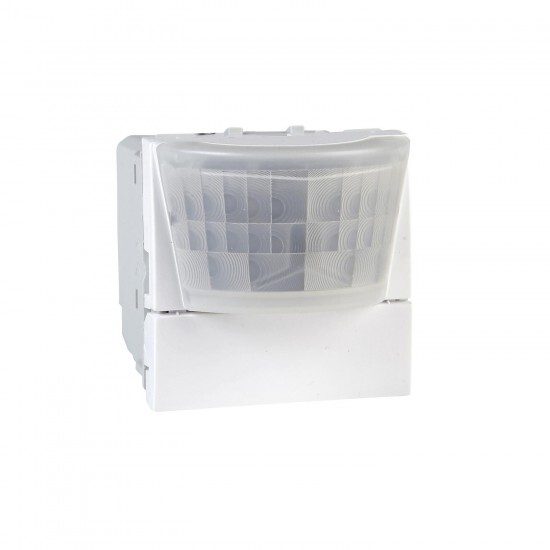

Unica - movement detector 2300 W - 230V AC - 2 m - white
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Unica |
| Izdelek ali sestavni del | movement detector |
| Skupina izdelkov | Unica |
| load type | 230 V AC incandescent lamp - 2300 W 230 V AC halogen lamp - 2000 W low voltage halogen lamp with wire-wound transformer - 1500 VA low voltage lamps with electronic transformer - 1150 VA 230 V AC fan - 200 VA 230 V AC convector - 2300 W 230 V AC contactor - 200 VA fluorescent tube (diameter: 26-38 mm): 1 1-10 V dimmable electronic ballast - 2000 VA, cos phi = 0.9 compact fluorescent lamp - 500 VA |
| Predstavitev naprave | mechanism |
| cover plate colour tint | white |
| aesthetic name | Unica (standard aesthetic) |
| Komplementarno | |
| Višina | 45 mm |
| Teža izdelka | 0.076 kg |
| Povezave - terminali | screw terminals |
| control type | manual override with 5 push-buttons maximum |
| Širina | 45 mm |
| Globina | 58 mm |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50/60 Hz |
| Material | ASA + PC: mechanism cover |
| Označevanje | L+N |
| clamping connection capacity | <= 2 x 2.5 mm² for flexible cable(s) <= 2 x 2.5 mm² for rigid cable(s) |
| Način pritrjevanja | clip-in |
| market segment | residential small commercial |
| embedding depth | 34 mm |
| time delay range | 2 s...20 min |
| type of setting | adjustable disconnection time and brightness |
| light intensity adjustment | 5-1000 lux |
| power range | 2300 W |
| number of modules | 2 modules |
| selection modes | M: manual S: slave A: automatic |
| mounting height | 1.2-2.15 m |
| movement detection area | 9 x 18 m (PIR mounting height 1.2 m) 10 x 20 m (PIR mounting height 2.15 m) |
| presence detection area | 6 x 12 m (PIR mounting height 2.15 m) 5 x 10 m (PIR mounting height 1.2 m) |
| detection angle | full 180° partial 90° left or right |
| wiring configuration | 3 wires with neutral |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-35 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -20-55 °C |
| relative humidity | 0-5 % |
| IK stopnja zaščite | IK01 |
| Standardi | EN 60669-2-1 |
| environmental characteristic | acetone alcohol window-cleaning fluid ammonia UV resistant petrol oil liquid soap bleach |
| environmental health and issues | halogen free |
