MGU3.453.18 Schneider Electric
MGU3.453.18 Schneider Electric
Opis

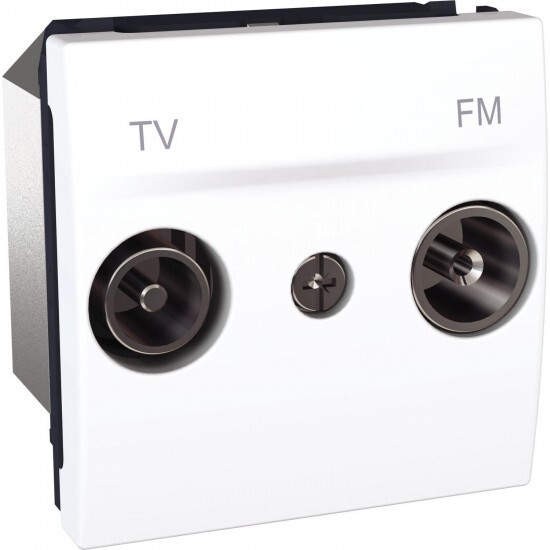

Unica - TV/FM socket - intermediate socket - white
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Unica |
| Izdelek ali sestavni del | TV/FM socket |
| Skupina izdelkov | Unica |
| Predstavitev naprave | mechanism |
| colour tint | white |
| Main colour tint | white |
| condition of use | series distribution systems |
| aesthetic name | Unica (standard aesthetic) |
| TV socket type | intermediate socket (passage) |
| Komplementarno | |
| Višina | 45 mm |
| Teža izdelka | 0.073 kg |
| Širina | 45 mm |
| Globina | 28 mm |
| Material | ASA + PC: mechanism cover |
| Način pritrjevanja | clip-in |
| market segment | residential small commercial |
| embedding depth | 18 mm |
| number of modules | 2 modules |
| number per line | 7 |
| TV connector | male IEC 9.52 mm |
| DC current flow | yes |
| radio connector | female IEC 9.52 mm |
| path attenuation | 17 dB TV/UHF signal125-860 MHz 17 dB TV/VHF signal47-68 MHz 32 dB R signal87.5-108 MHz |
| maximum branch attenuation | TV <0.5 dB |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 15-35 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | 0-35 °C |
| IK stopnja zaščite | IK01 |
| Standardi | EN 50083-1 EN 50083-2 EN 50083-4 EMC directive |
| environmental characteristic | petrol acetone alcohol ammonia window-cleaning fluid liquid soap UV resistant bleach oil |
| environmental health and issues | halogen free |
