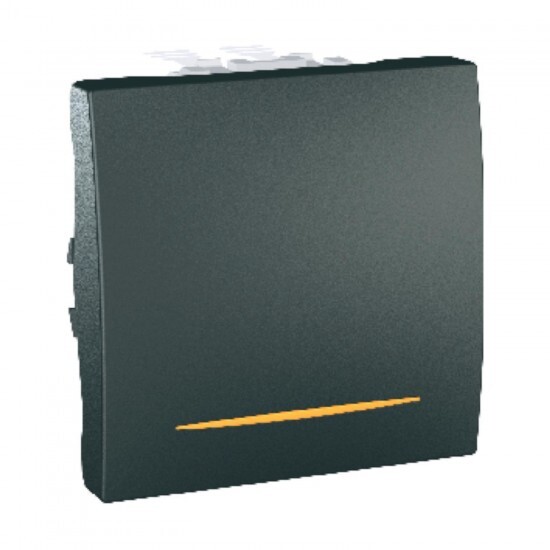

MGU3.201.12S Schneider
MGU3.201.12S Schneider
Opis
Unica Top/Class - rocker switch - 1-way - 10 AX 250 VAC - 2 m - graph.
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Unica |
| Izdelek ali sestavni del | switch |
| Skupina izdelkov | Unica |
| Aplikacija naprave | control |
| Provided equipment | internal power connection |
| Predstavitev naprave | mechanism |
| switch function | 1-pole 1-way |
| colour tint | graphite |
| Main colour tint | graphite |
| aesthetic name | Unica Top - Unica Class |
| Komplementarno | |
| Višina | 45 mm |
| Teža izdelka | 0.0227 kg |
| Povezave - terminali | screwless terminals |
| electrical durability | 10000 cycles |
| Širina | 45 mm |
| Globina | 34 mm |
| product certifications | 14.10.01/5433 |
| standards | EMC directive EN 60669-1 LV directive |
| Material | ABS (acrylonitrile butadiene-styrene): mechanism cover |
| cable cross section | 0-2.5 mm² rigid cable 0-2.5 mm² flexible cable |
| insulation resistance | > 5 MOhm at 500 V |
| ambient air temperature for operation | 25-35 °C |
| Način pritrjevanja | clip-in |
| embedding depth | 22 mm |
| ambient air temperature for storage | 0-50 °C |
| dielectric strength | 2000 V |
| number of modules | 2 modules |
| rated current | 10 AX at 250 V AC 50/60 Hz |
| opening distance | > 3 mm |
| minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| pilot light | LED, colour: amber, current consumption: 0.15 mA, temperature rise: 15 °C |
| actuator | rocker |
| Okolje | |
| IP stopnja zaščite | IP20 |
| IK stopnja zaščite | IK01 |
| environmental characteristic | oil liquid soap ammonia alcohol petrol acetone bleach UV resistant window-cleaning fluid |
| environmental health and issues | halogen free |
