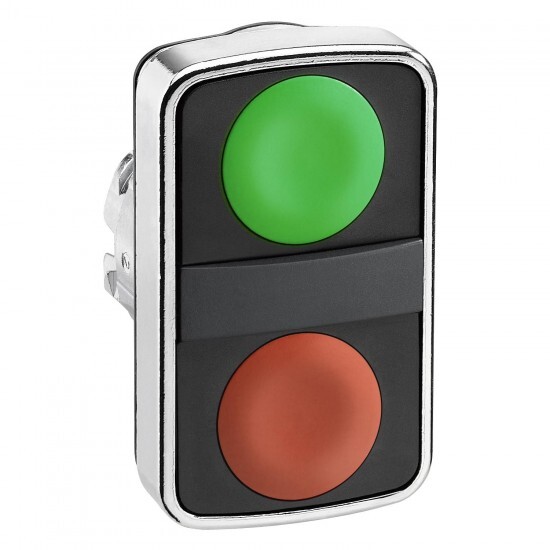

ZB4BA7340 Schneider Electric
ZB4BA7340 Schneider Electric
Opis
green flush/red flush double-headed pushbutton Ø22 unmarked
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB4 |
| Izdelek ali sestavni del | head for double-headed push-button |
| Kratko ime naprave | ZB4 |
| mounting diameter | 22 mm |
| Oblika glave signalne enote | rectangular |
| head type | standard |
| Prodaja na nedeljivo količino | 1 |
| bezel material | chromium plated metal |
| type of operator | spring return |
| operator profile | 2 flush push-buttons |
| operators description | green unmarked - red unmarked |
| Komplementarno | |
| Teža izdelka | 0.056 kg |
| mechanical durability | 1000000 cycles |
| Kompatibilnostna koda | ZB4 |
| device presentation | basic element |
| Odpornost proti visokotlačnemu čistilniku | 7000000 Pa at 55 °C, distance : 0.1 m |
| customizable | no |
| cap/operator or lens colour | green/red |
| colour of marking | white marking when green, red or black caps black marking when white caps |
| Označevanje | unmarked |
| main group | double head |
| electrical composition code | C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting |
| group of product | flush/flush unmarked |
| operator profile | green flush, unmarked red flush, unmarked |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| IK stopnja zaščite | IK06 conforming to IEC 50102 |
| Certifikati izdelkov | UL listed BV RINA GL CSA DNV LROS (Lloyds register of shipping) |
| Standardi | EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| electrical shock protection class | class I conforming to IEC 60536 |
