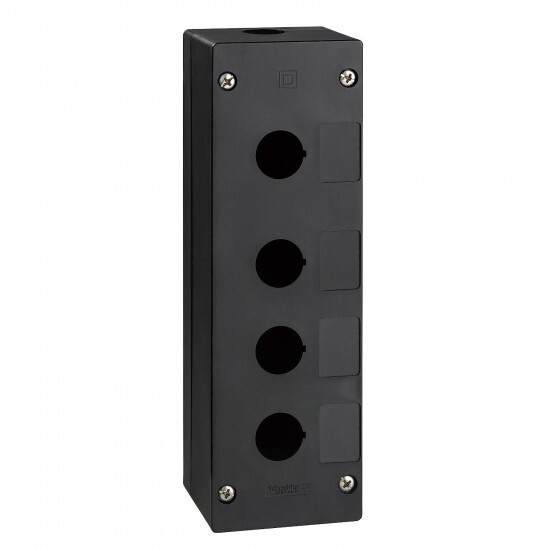

XALG041 Schneider Electric
XALG041 Schneider Electric
Opis
empty control station-severe environments-black- 4cut-outs- 4 vertical openings
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XALG |
| Izdelek ali sestavni del | empty control station |
| Kratko ime naprave | XALG |
| product destination | for XB5 Ø 22 mm control and signalling units |
| Material | mineral reinforced polyamide |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 IP69K |
| cable entry | 2 knock-outs for ISO M20 cable entry |
| colour of cover | black (RAL 9005) |
| colour of base of enclosure | black (RAL 9005) |
| environmental characteristic | severe ambiance |
| Komplementarno | |
| Teža izdelka | 0.382 kg |
| Kompatibilnostna koda | XALG |
| Odpornost proti visokotlačnemu čistilniku | 10 mPa at 80 °C, distance : 0.2 m |
| CAD overall height | 72 mm |
| CAD overall width | 135 mm |
| CAD overall depth | 65 mm |
| assembly style | for customer assembly |
| number of cut-out | 3 cut-outs 40 mm 1 cut-out 50 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| IK stopnja zaščite | IK05 conforming to EN 50102 |
| Standardi | EN/IEC 60947-5-1 EN/IEC 60947-1 |
| electrical shock protection class | class II conforming to EN/IEC 61140 |
| Zaščitna obdelava | TC TH |
| resistance to chemical agents | good resistance to lactic acid at 10 °C good resistance to ethane good resistance to ethanol good resistance to ethylene good resistance to fatty acids good resistance to fatty alcohols good resistance to milk good resistance to motor oils and greases good resistance to oils (vegetable, mineral) good resistance to petroleum good resistant to acetone good resistant to detergent at 60 °C good resistant to uric acid (20 %) limited resistance to acetic acid (10 %) limited resistance to boric acid not resistant to hydrogen peroxide (30 %) not resistant to nitric acid (2 %) not resistant to formic acid (10 %) at 50 °C not resistant to lactic acid at 90 °C good resistance to ammonia good resistance to benzene good resistance to butter good resistance to citric acid (10 %) good resistance to cutting compounds |
