Opis

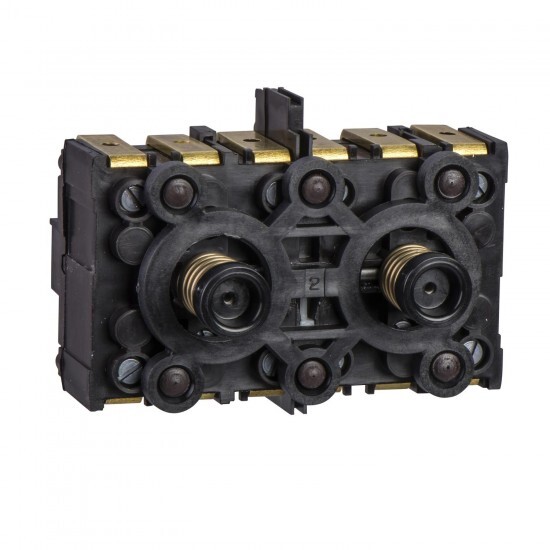

spring return contact block - 3 NO + 1 NO - front mounting, 40 mm centres
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XAC |
| Izdelek ali sestavni del | contact block |
| Opis polov | 3-pole |
| type of operator | 2 spring return |
| Združljivost izdelkov | XACB |
| contacts type and composition | 3 NO + 1 NO |
| contact operation | snap action simultaneous |
| electrical circuit type | power circuit |
| component name | XESD |
| contact block type | double |
| contact block application | single speed |
| mounting of block | front mounting |
| mechanical interlocking | with mechanical interlocking |
| Komplementarno | |
| Teža izdelka | 0.21 kg |
| Povezave - terminali | screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to CSA |
| electrical durability | 1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A 700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A |
| mechanical durability | 1000000 cycles |
| terminals description ISO n°1 | B (33-34)NO (43-44)NO (23-24)NO (13-14)NO |
| short-circuit protection | 12 A fuse protection by cartridge fuse type aM |
| [Ithe] conventional enclosed thermal current | 20 A |
| terminals description ISO n°2 | (63-64)NO (44-84)NO (53-54)NO (73-74)NO B |
| operating force | 32 N |
| rated operational power in W | 3000 W AC-3 at 240 V 3000 W AC-4 at 400 V |
| terminal identifier | (13-14)NO (11-12)NC |
| rated power in hp | 3 hp at 240 V |
| horizontal fixing centres | 40 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Standardi | IEC 60947-3 CSA C22.2 No 14 EN 60947-3 |
| Odporno proti udarcu | 100 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class II conforming to IEC 61140 |
