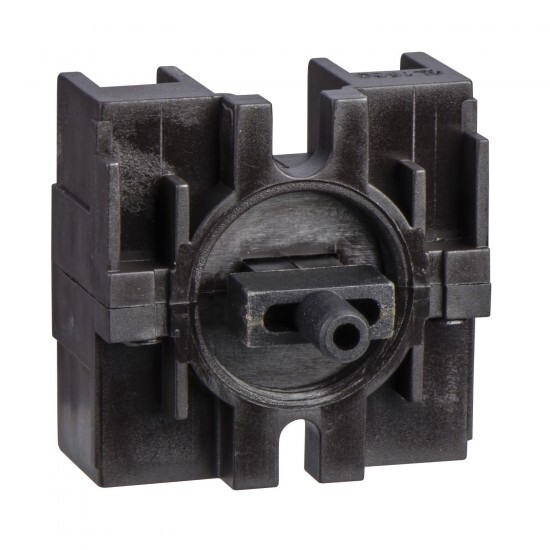

PENDANT STATION CONTACT 600VAC 10A XE
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XAC |
| Izdelek ali sestavni del | contact block |
| type of operator | spring return |
| Združljivost izdelkov | XACM XACB XAB91... |
| contact operation | snap action |
| electrical circuit type | control circuit |
| component name | XESB |
| contact block type | single |
| contact block application | single speed |
| mounting of block | front mounting |
| mechanical interlocking | without mechanical interlock |
| Komplementarno | |
| Povezave - terminali | screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| [Ui] Nazivna izolacijska trdnost | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| mechanical durability | 1000000 cycles |
| terminals description ISO n°1 | (3-4-1-2)OF |
| short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| maximum resistance across terminals | 25 MOhm |
| contact code designation | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| operating force | 25 N 15 N |
| rated operational power in W | 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| terminal identifier | (13-14)NO (11-12)NC |
| rated operational power in VA | 100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load) 450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load) 50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) 750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load) |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Standardi | EN 60947-5-1 CSA C22.2 No 14 IEC 60947-5-1 |
| Odporno proti udarcu | 100 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class II conforming to IEC 61140 |
