Opis

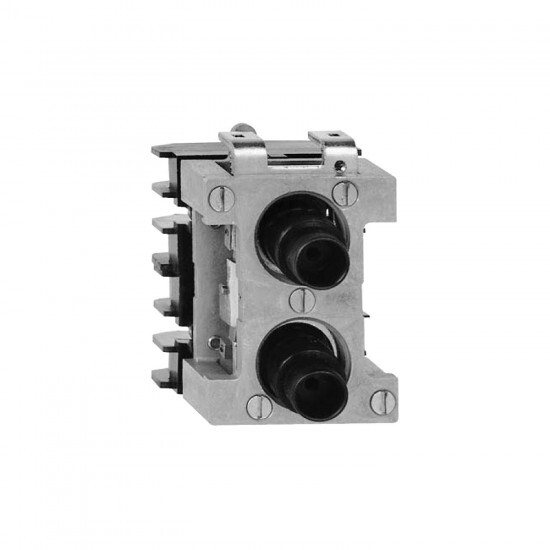

latching contact block - 1 NC + 1 NO - front mounting, 40 mm centres
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XAC |
| Izdelek ali sestavni del | contact block |
| type of operator | latching |
| Združljivost izdelkov | XACB XACM |
| contacts type and composition | 1 NC + 1 NO |
| contact operation | slow-break |
| electrical circuit type | control circuit |
| component name | XEND |
| contact block type | double |
| contact block application | single speed |
| mounting of block | front mounting |
| mechanical interlocking | without mechanical interlock |
| Komplementarno | |
| Teža izdelka | 0.17 kg |
| Povezave - terminali | screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| [Ui] Nazivna izolacijska trdnost | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| mechanical durability | 1000000 cycles |
| terminals description ISO n°1 | B (23-24)NO (11-12)NC |
| short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| maximum resistance across terminals | 25 MOhm |
| contact code designation | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| terminals description ISO n°2 | (23-24)NO (11-12)NC B |
| rated operational power in W | 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| terminal identifier | (11-12)NC (13-14)NO |
| rated operational power in VA | 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load) 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load) 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load) |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Standardi | IEC 60947-5-1 CSA C22.2 No 14 EN 60947-5-1 |
| Odporno proti udarcu | 100 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
