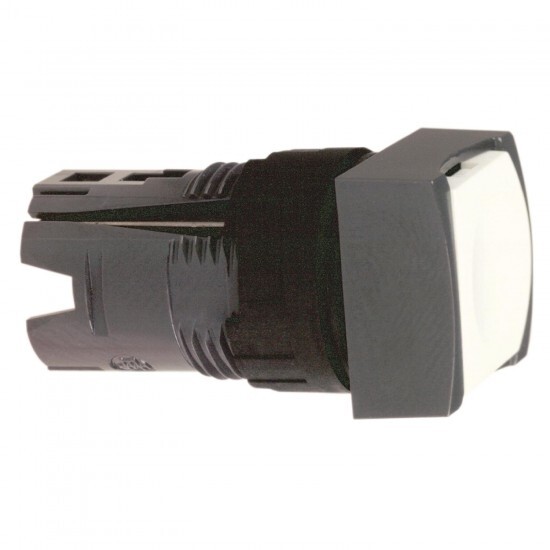

ZB6CA1 Schneider
ZB6CA1 Schneider
Opis
white square flush pushbutton head Ø16 spring return unmarked
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB6 |
| Izdelek ali sestavni del | head for non-illuminated push-button |
| Kratko ime naprave | ZB6 |
| mounting diameter | 16 mm |
| Oblika glave signalne enote | square |
| Prodaja na nedeljivo količino | 1 |
| bezel material | plastic |
| type of operator | spring return |
| operator profile | white flush, unmarked |
| Komplementarno | |
| Teža izdelka | 0.016 kg |
| Kompatibilnostna koda | ZB6 |
| CAD overall height | 18 mm |
| CAD overall width | 18 mm |
| CAD overall depth | 33 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CCC CSA UL GOST |
| Standardi | EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C8201-5-1 CSA C22.2 No 14 JIS C 852 UL 508 EN/IEC 60947-5-5 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 13 conforming to UL 50 NEMA 4 conforming to UL 50 NEMA 4X conforming to UL 50 NEMA 13 conforming to CSA C22.2 No 94 NEMA 4 conforming to CSA C22.2 No 94 NEMA 4X conforming to CSA C22.2 No 94 |
| electrical shock protection class | class II conforming to IEC 61140 |
| Zaščitna obdelava | TC |
