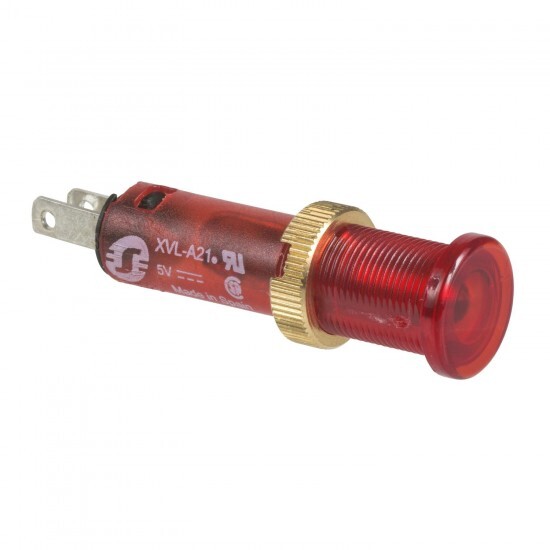

XVLA214 Schneider
XVLA214 Schneider
Opis
pilot light Ø8 - IP40/IP65 - red - covered LED included - 5V - faston
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XVL |
| Izdelek ali sestavni del | LED pilot light with integral lens cap |
| [Us] Nazivna napajalna npetost | 5 V |
| Izvor svetlobe | covered LED |
| mounting diameter | 8 mm |
| protection type | built-in by diode integral ballast resistor |
| IP degree of protection | IP65 (with seal XVLZ911) conforming to IEC 60529 IP65 (with seal XVLZ911) conforming to NF C 20-010 IP40 conforming to IEC 60529 IP40 conforming to NF C 20-010 |
| component name | XVL |
| light block colour | red |
| Komplementarno | |
| Višina | 10 mm |
| Teža izdelka | 0.003 kg |
| Povezave - terminali | tag for Faston connectors: 2.8 x 0.5 mm tag for soldering connectors |
| [Ui] Nazivna izolacijska trdnost | 50 V conforming to IEC 60947-1 |
| Širina | 10 mm |
| Globina | 36 mm |
| terminals description ISO n°1 | (X1-X2)PL |
| Poraba toka | 25 mA |
| nominal voltage limit | 0.8...1.1 Un |
| supply circuit type | DC |
| bulb lifespan | 100000 h |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class 3 conforming to IEC 60536 class 3 conforming to NF C 20-030 |
| Certifikati izdelkov | UL CSA |
| Zaščitna obdelava | TC |
