XB6DGH5B Schneider
XB6DGH5B Schneider
Opis

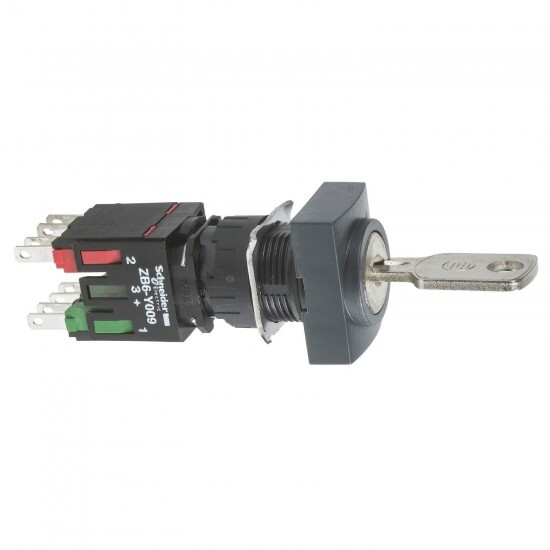

black complete rectang selector switch Ø16 3-position stay put 1NO+1NC Ronis 200
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB6 |
| Izdelek ali sestavni del | complete selector switch |
| Kratko ime naprave | XB6 |
| mounting diameter | 16 mm |
| Oblika glave signalne enote | rectangular |
| Prodaja na nedeljivo količino | 1 |
| bezel material | plastic |
| type of operator | stay put |
| operator profile | key switch |
| contacts type and composition | 1 NO + 1 NC |
| contact operation | slow-break |
| operator position information | 3 positions 70° |
| operating position | any position |
| key withdrawal position | in any position |
| type of keylock | Ronis 200 |
| Komplementarno | |
| Teža izdelka | 0.036 kg |
| Povezave - terminali | Faston connectors, connection size: 2.8 x 0.5 mm |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| mechanical durability | 200000 cycles |
| Kompatibilnostna koda | XB6 |
| terminals description ISO n°1 | (21-22)NC (13-14)NO |
| contacts material | silver alloy (Ag/Ni) |
| short-circuit protection | 6 A cartridge fuse type gG |
| positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| CAD overall height | 18 mm |
| CAD overall width | 24 mm |
| CAD overall depth | 80 mm |
| [Ie] rated operational current | 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
| electrical reliability | λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN 60947-5-4 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL GOST CSA CCC |
| Standardi | EN/IEC 60947-5-5 JIS C 852 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class II conforming to IEC 61140 |
| Zaščitna obdelava | TC |
