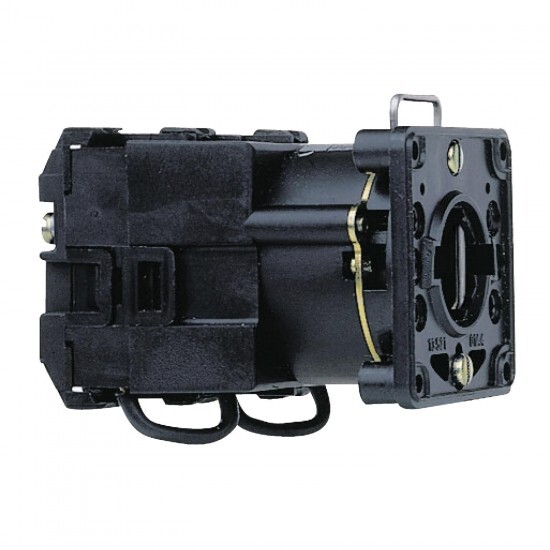

K1T10 Schneider Electric

k1 contact block

Glavno
Serija izdelka	Harmony K
Izdelek ali sestavni del	cam switch body
bezel material	plastic
fixing mode	Ø 22 mm hole
Lokacija montaže	front
component name	K1
[Ith] conventional free air thermal current	12 A
sub-assembly composition	contact blocks + fixing plate
cam switch function	switch
Komplementarno
[Ui] Nazivna izolacijska trdnost	690 V (pollution degree 3) conforming to IEC 60947-1
electrical durability	1000000 cycles AC-15
mechanical durability	1000000 cycles
Kompatibilnostna koda	K1T
[Uimp] rated impulse withstand voltage	4 kV in isolating function
short-circuit protection	20 A cartridge fuse, type gG
positive opening	with
contact operation	slow-break
electrical connection	captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
maximum operating rate	2.5 cyc/mn AC-21
[Ithe] conventional enclosed thermal current	10 A
short-circuit current	10000 A
rated operational power in W	10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC	1 A at 500 V AC-15 conforming to IEC 947-5-1
Okolje
Temperatura okoliškega zraka za delovanje	-25-55 °C
IP stopnja zaščite	IP40 conforming to IEC 529
Temperatura okoliškega zraka za skladiščenje	-40-70 °C
overvoltage category	class II conforming to IEC 536
Certifikati izdelkov	CSA 240 V 1 hp 1 phase
Standardi	CENELEC EN 50013
Odporno proti udarcu	30 gn conforming to IEC 68-2-27
Odpornost proti vibracijam	5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Zaščitna obdelava	TC
