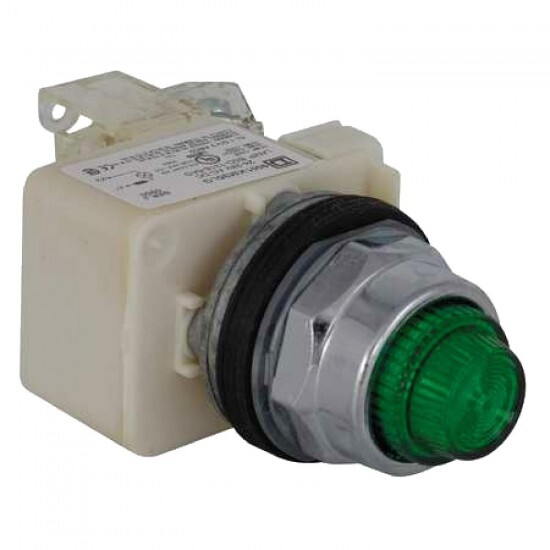

9001KT35LGG31 Schneider Electric
9001KT35LGG31 Schneider Electric
Opis
PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony 9001K |
| Izdelek ali sestavni del | illuminated push to test push-button |
| Kratko ime naprave | 9001K |
| type of operator | spring return |
| operator profile | green projecting, unmarked |
| Komplementarno | |
| Teža izdelka | 0.235 kg |
| Povezave - terminali | screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| mechanical durability | 5000000 cycles |
| Kompatibilnostna koda | 9001K |
| tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| [Us] rated supply voltage | 24...28 V AC/DC 24 V AC/DC |
| device presentation | complete product |
| contacts material | silver alloy contacts |
| short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| light source | LED LED |
| light block supply | direct |
| positive opening | without |
| mounting diameter | 30 mm |
| [Ith] conventional free air thermal current | 10 A |
| rated breaking capacity | 1.2 kA at 600 V AC-15, 720 VA 1.5 kA at 480 V AC-15, 720 VA 3 kA at 240 V AC-15, 720 VA 6 kA at 120 V AC-15, 720 VA 0.1 kA at 600 V DC-13 0.27 kA at 250 V DC-13 0.55 kA at 125 V DC-13 |
| shape of signaling unit head | octagonal |
| [Icm] rated short-circuit making capacity | 0.27 kA at 250 V DC-13, 7200 VA 0.55 kA at 125 V DC-13, 7200 VA 12 kA at 600 V AC-15, 7200 VA 15 kA at 480 V AC-15, 7200 VA 30 kA at 240 V AC-15, 7200 VA 60 kA at 120 V AC-15, 7200 VA |
| contacts type and composition | 1 NO |
| bezel material | chromium plated metal |
| contact operation | standard |
| operating position | any position |
| shape of screw head | cross slotted |
| bulb base | BA 9s |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | NEMA UL 508 |
| Standardi | JIS C8201-5-1 EN/IEC 60947-1 UL 508 JIS C 852 EN/IEC 60947-5-1 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-1 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| electrical shock protection class | class II conforming to IEC 61140 |
| Zaščitna obdelava | TC |
