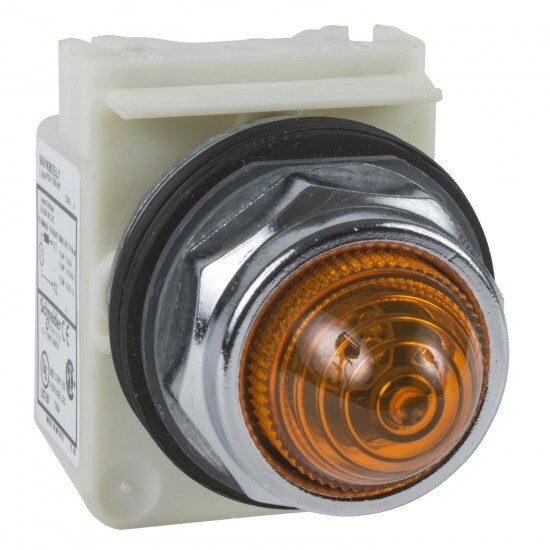

9001KP35LYA9 Schneider Electric
9001KP35LYA9 Schneider Electric
Opis
PILOT LIGHT 28V 30MM TYPE K +OPTIONS
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony 9001K |
| Izdelek ali sestavni del | pilot light |
| Kratko ime naprave | 9001K |
| Komplementarno | |
| Teža izdelka | 0.134 kg |
| Povezave - terminali | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 2) conforming to IEC 60947-1 |
| Kompatibilnostna koda | 9001K |
| tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| [Us] rated supply voltage | 24...28 V AC/DC |
| device presentation | complete product |
| short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| light source | high luminosity LED yellow LED |
| light block supply | direct 24...28 V AC/DC |
| mounting diameter | 30 mm |
| [Ith] conventional free air thermal current | 10 A |
| shape of signaling unit head | round |
| CAD overall height | 70 mm |
| bezel material | chromium plated metal |
| operating position | any position |
| CAD overall width | 54 mm |
| shape of screw head | cross slotted cross slotted |
| CAD overall depth | 42 mm |
| bulb base | BA 9s |
| cap/operator or lens colour | amber |
| lens type | domed plastic |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 61140 |
| Certifikati izdelkov | NEMA UL 508 |
| Standardi | UL 508 EN/IEC 60947-1 JIS C 852 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Zaščitna obdelava | TC |
