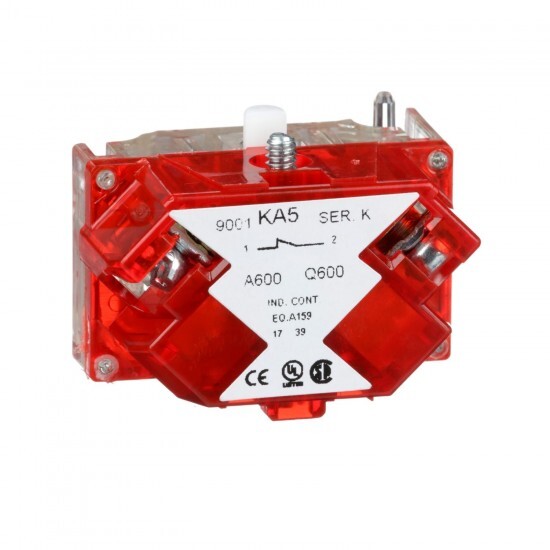

9001KA5 Schneider Electric
9001KA5 Schneider Electric
Opis
30MM CONTACT BLOCK 1N/C LATE OPENING
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony 9001K |
| Izdelek ali sestavni del | contact block with protected terminals |
| Kratko ime naprave | 9001K |
| Komplementarno | |
| Teža izdelka | 0.023 kg |
| Povezave - terminali | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1 |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Kompatibilnostna koda | 9001K |
| tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| terminals description ISO n°1 | (3-4)NO_CL |
| contacts material | silver alloy contacts |
| short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| positive opening | with conforming to IEC 60947-5-2 |
| [Ith] conventional free air thermal current | 10 A |
| rated breaking capacity | 3 kA at 240 V AC-15, 720 VA 6 kA at 120 V AC-15, 720 VA 1.2 kA at 600 V AC-15, 720 VA 1.5 kA at 480 V AC-15, 720 VA 0.1 kA at 600 V DC-13 0.27 kA at 250 V DC-13 0.55 kA at 125 V DC-13 |
| [Icm] rated short-circuit making capacity | 12 kA at 600 V AC-15, 7200 VA 15 kA at 480 V AC-15, 7200 VA 30 kA at 240 V AC-15, 7200 VA 60 kA at 120 V AC-15, 7200 VA 0.55 kA at 125 V DC-13 0.1 kA at 600 V DC-13 0.27 kA at 250 V DC-13 |
| contacts type and composition | 1 NC |
| contact operation | late-break |
| shape of screw head | cross slotted |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | NEMA UL 508 |
| Standardi | EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C 4520 EN/IEC 60947-1 JIS C 852 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class II conforming to IEC 61140 |
| Zaščitna obdelava | TC |
