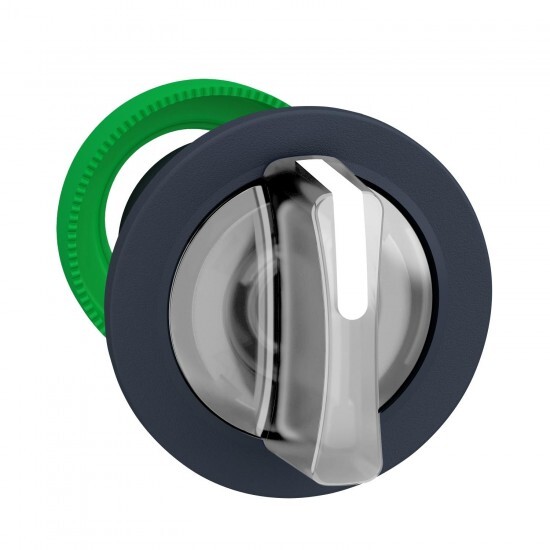

ZB5FK1513 Schneider Electric
ZB5FK1513 Schneider Electric
Opis
flush mounted white illuminated selector switch head 3 pos return center
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB5 |
| Izdelek ali sestavni del | head for illuminated selector switch |
| Kratko ime naprave | ZB5 |
| mounting diameter | 30 mm |
| Oblika glave signalne enote | round |
| head type | built-in-flush |
| Prodaja na nedeljivo količino | 1 |
| bezel material | dark grey plastic |
| type of operator | to centre spring return |
| operator profile | white standard handle |
| Združljivost izdelkov | integral LED |
| operator position information | 3 positions +/- 45° |
| Komplementarno | |
| Teža izdelka | 0.03 kg |
| mechanical durability | 1000000 cycles |
| Kompatibilnostna koda | ZB5 |
| GCR BRIDGE | ZB5FKCUST01 |
| customizable | yes |
| CAD overall height | 37 mm |
| CAD overall width | 37 mm |
| CAD overall depth | 46 mm |
| cap/operator or lens colour | white |
| main group | illum select switch |
| electrical composition code | M3 for <4 contacts using single blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED M4 for <4 contacts using single and double blocks in front mounting with integral LED |
| group of product | illum. integral LED |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 60536 |
| IK stopnja zaščite | IK03 conforming to IEC 50102 |
| Certifikati izdelkov | LROS (Lloyds register of shipping) BV CSA DNV RINA GL UL listed |
| Standardi | UL 508 EN/IEC 60947-1 EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Zaščitna obdelava | TH |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
