Opis

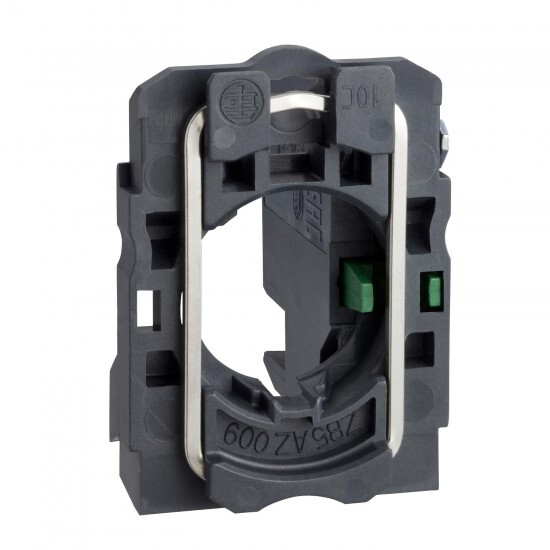

single contact block with body/fixing collar 1NO plug-in connector
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB5 |
| Izdelek ali sestavni del | complete body/contact assembly |
| Kratko ime naprave | ZB5 |
| fixing collar material | plastic |
| head type | standard |
| Prodaja na nedeljivo količino | 1 |
| contacts type and composition | 1 NO |
| contact operation | slow-break |
| connections - terminals | plug-in connector |
| contact block type | single |
| Komplementarno | |
| Teža izdelka | 0.018 kg |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to EN 60947-1 |
| electrical durability | 1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| mechanical durability | 10000000 cycles |
| Kompatibilnostna koda | ZB5 |
| terminals description ISO n°1 | (13-14)NO |
| customizable | no |
| contacts material | silver alloy (Ag/Ni) |
| short-circuit protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| positive opening | without |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 |
| CAD overall height | 42 mm |
| CAD overall width | 30 mm |
| CAD overall depth | 32 mm |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
| electrical reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| device composition | body fixing collar |
| operating force | 2.3 N NO changing electrical state |
| operating travel | 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| contacts usage | standard contacts |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CSA DNV BV GL UL LROS (Lloyds register of shipping) RINA |
| Standardi | CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Zaščitna obdelava | TH |
