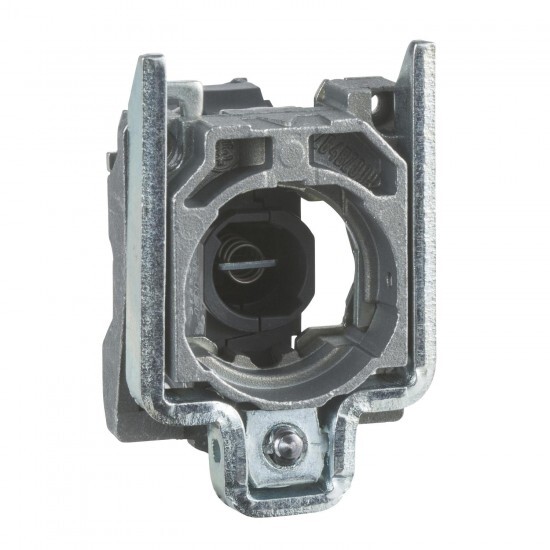

ZB4BV6 Schneider Electric
ZB4BV6 Schneider Electric
Opis
light block with body/fixing collar for BA9s bulb 250V
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB4 |
| Izdelek ali sestavni del | complete body/light block assembly |
| Kratko ime naprave | ZB4 |
| [Us] Nazivna napajalna npetost | 250 V <= 250 V |
| Izvor svetlobe | bulb not included |
| fixing collar material | zamak |
| Prodaja na nedeljivo količino | 1 |
| Grlo žarnice | BA 9s |
| light block supply | direct <2.4 W |
| connections - terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Komplementarno | |
| Teža izdelka | 0.052 kg |
| [Ui] Nazivna izolacijska trdnost | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Kompatibilnostna koda | ZB4 |
| tightening torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| terminals description ISO n°1 | (X1-X2)PL |
| device presentation | basic sub-assemblies |
| Tip signalizacije | steady |
| customizable | no |
| CAD overall height | 47 mm |
| CAD overall width | 30 mm |
| shape of screw head | cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver |
| CAD overall depth | 37 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | BV RINA CSA UL listed LROS (Lloyds register of shipping) GL DNV |
| Standardi | EN/IEC 60947-5-5 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class I conforming to IEC 60536 |
| Zaščitna obdelava | TH |
