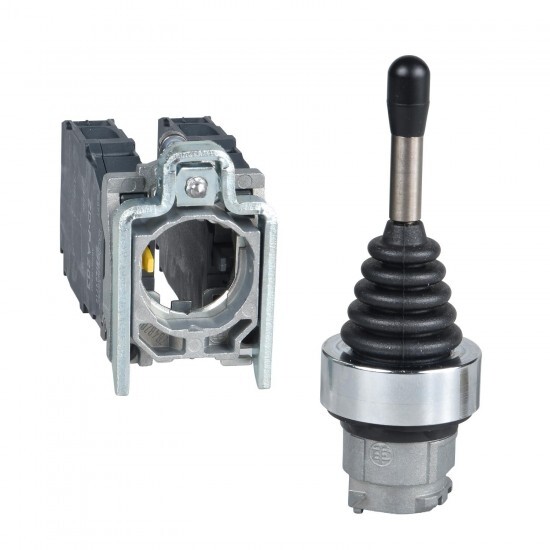

joystick controller Ø22 4-direction stay put 1NO per direction
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XDA |
| Izdelek ali sestavni del | joystick controller |
| Kratko ime naprave | XD4 |
| mounting diameter | 22 mm |
| fixing collar material | zamak |
| Prodaja na nedeljivo količino | 1 |
| bezel material | chromium plated metal |
| type of operator | stay put, long operating shaft 54 mm length |
| contacts type and composition | 1 NO |
| contact operation | slow-break |
| operator position information | 5 positions |
| operator direction information | 4 directions |
| connections - terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Komplementarno | |
| Teža izdelka | 0.133 kg |
| [Ui] Nazivna izolacijska trdnost | 600 V (pollution degree 3) conforming to EN 60947-1 |
| electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| mechanical durability | 1000000 cycles |
| Kompatibilnostna koda | XD4 |
| tightening torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| device presentation | complete product |
| Odpornost proti visokotlačnemu čistilniku | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts material | silver alloy (Ag/Ni) |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| positive opening | without |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 |
| shape of signaling unit head | round |
| shape of screw head | cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
| electrical reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| notch per direction | 1-1 |
| contacts usage | standard |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| IK stopnja zaščite | IK03 conforming to IEC 50102 |
| Certifikati izdelkov | LROS (Lloyds register of shipping) CSA UL listed BV DNV RINA GL |
| Standardi | UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C8201-1 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| electrical shock protection class | class I conforming to IEC 60536 |
| Zaščitna obdelava | TH |
