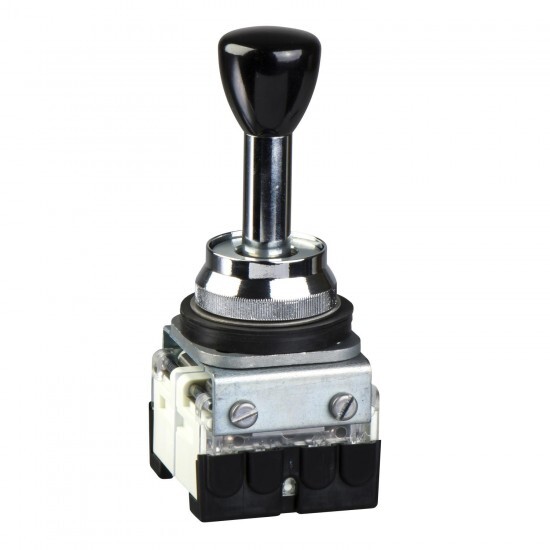

XD2AL231 Schneider
XD2AL231 Schneider
Opis
complete joystick controller - Ø30 - 2 directions - 1 C/O per direction
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XD2 |
| Izdelek ali sestavni del | complete joystick controller |
| Kratko ime naprave | XD2 |
| mounting diameter | 30 mm |
| bezel material | chromium plated metal |
| Komplementarno | |
| Višina | 161 mm |
| Teža izdelka | 0.23 kg |
| Povezave - terminali | captive screw clamp terminals, 2 x 1.5 mm² with or without cable end captive screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| mechanical durability | 1000000 cycles |
| Kompatibilnostna koda | XD2 |
| Globina | 68 mm |
| short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1 |
| contacts type and composition | 1 C/O for snap action |
| contact code designation | A600-Q600 |
| return | 1 to 0 position |
| overvoltage category | class I conforming to IEC 61140 |
| operator position information | all positions |
| notch per direction | 1-1 |
| operator direction information | 2 directions |
| fixing center | 60 x 100 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP40 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CSA |
| Standardi | EN/IEC 60947-5-1 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Zaščitna obdelava | TC |
