Opis

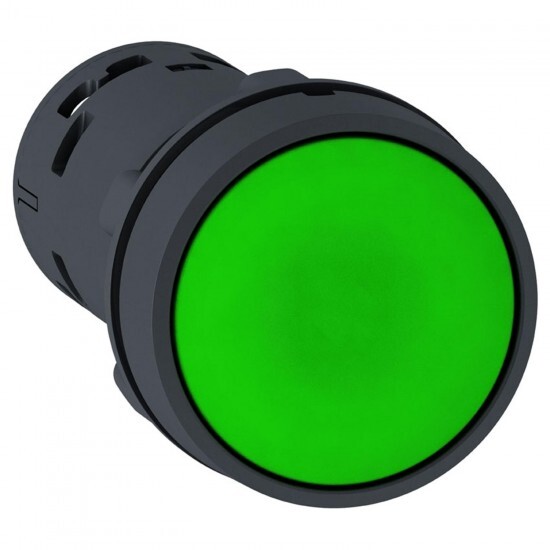

green flush pushbutton Ø22 - push push-to-release - 1NO - screw clamp terminals
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB7 |
| Izdelek ali sestavni del | push-button |
| Kratko ime naprave | XB7 |
| mounting diameter | 22 mm |
| Oblika glave signalne enote | round |
| Prodaja na nedeljivo količino | 10 |
| type of operator | push and push-to-release |
| operator profile | green flush |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| contacts type and composition | 1 NO |
| connections - terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Predstavitev naprave | monolithic product |
| Komplementarno | |
| Teža izdelka | 0.021 kg |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| electrical durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| mechanical durability | 300000 cycles |
| Kompatibilnostna koda | XB7 |
| tightening torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| terminals description ISO n°1 | (21-22)NC (13-14)NO |
| short-circuit protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| positive opening | with NC contact conforming to EN/IEC 60947-5-1 appendix K |
| CAD overall height | 29 mm |
| contact operation | slow-break |
| CAD overall width | 29 mm |
| shape of screw head | cross compatible with JIS No 1 screwdriver cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver |
| CAD overall depth | 51.5 mm |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| cap/operator or lens colour | green |
| Označevanje | unmarked |
| electrical reliability | λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4 |
| Način pritrjevanja | fixing nut beneath head: 2-2.4 N.m |
| fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm |
| device mounting | fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 61140 |
| Certifikati izdelkov | CCC GOST |
| Standardi | UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-1 JIS C8201-1 |
| Odporno proti udarcu | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 12 conforming to UL 50 E NEMA 3 conforming to UL 50 E |
| Zaščitna obdelava | TH |
