XVUC9SQ Schneider Electric
XVUC9SQ Schneider Electric
Opis

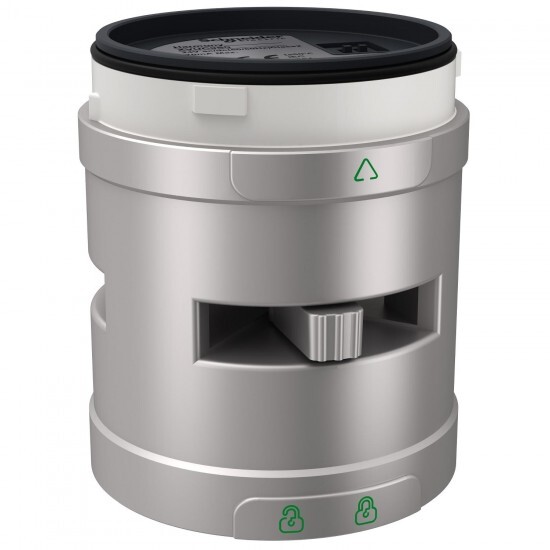

Ø 60 mm - XVU Buzzer unit - IP54 - 24 V AC/DC, Silver
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XVU |
| Izdelek ali sestavni del | modular tower light |
| mounting diameter | 60 mm |
| component name | XVU |
| beacon or indicator bank unit type | buzzer unit |
| housing colour | silver |
| Komplementarno | |
| Teža izdelka | 0.077 kg |
| Material | PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94 |
| [Us] rated supply voltage | 24 V AC/DC |
| Poraba toka | <= 70 mA |
| Tip signalizacije | continuous or intermittent buzzer |
| length | 58 mm |
| localisation on device | top |
| assembly style | customer assembly |
| maximum power dissipation in W | 1.7 W |
| sound frequency | 2635 Hz |
| acoustic level | 85 dB at 1 m |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-50 °C |
| IP stopnja zaščite | IP54 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CSA RoHS CE UL |
