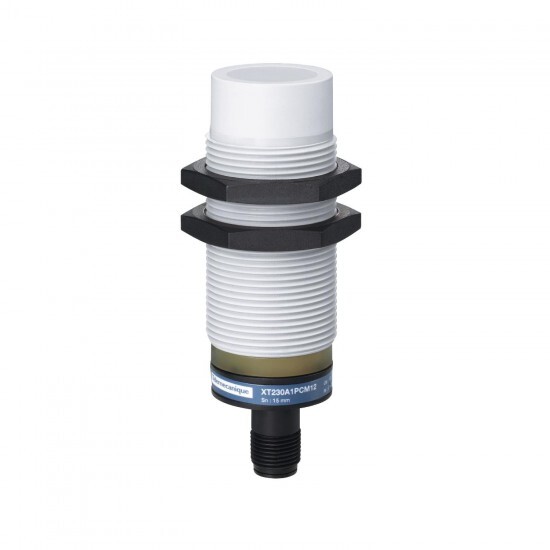

capacitive sensor - XT1 - cylindrical M30 - plastic - Sn 15 mm - 12..24 V DC
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XT |
| [Us] Nazivna napajalna npetost | 12...24 V DC with reverse polarity protection |
| size | 74.5 mm |
| Material | plastic |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| sensor design | cylindrical M30 |
| body type | fixed |
| electrical connection | male connector M12, 4 pins |
| product specific application | detection of insulated or conductive materials |
| enclosure material | plastic |
| discrete output type | PNP |
| discrete output function | 1 NC + 1 NO |
| type of output signal | discrete |
| sensor name | XT2 |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 15 mm |
| sensor type | capacitive proximity sensor |
| detector flush mounting acceptance | non flush mountable |
| output circuit type | DC |
| maximum delay response | 15 ms |
| Komplementarno | |
| Teža izdelka | 0.15 kg |
| Poraba toka | < 25 mA |
| Omejitve napajalne napetosti | 10-30 V DC |
| protection type | short-circuit protection |
| maximum voltage drop | <2.5 V (closed) |
| length | 74.5 mm |
| Označevanje | CE |
| repeat accuracy | < 5 % Sr |
| maximum residual current | 100 mA open state |
| switching frequency | <= 150 Hz |
| sensing range | 8...15 mm |
| differential travel | < 1...20 % Sr |
| maximum delay recovery | 15 ms |
| maximum delay first up | 100 ms |
| detection face | frontal |
| status LED | output state indication: 1 LED (yellow) |
| setting-up | sensitivity by potentiometer |
| maximum switching current | 400 mA |
| [Sa] assured operating distance | 0-11 mm |
| threaded length | 48.5 mm |
| ISO thread | M30 x 1.5 |
| adjustment zone | 0-17 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-60 °C |
| Certifikati izdelkov | cULus |
| Odpornost na elektromagnetna polja | 3 V/m conforming to IEC 61000-4-3 |
| Standardi | EN/IEC 60947-5-2 |
| Odporno proti udarcu | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Odpornost na elektrostatično razelektritev | 4 kV contact conforming to IEC 61000-4-2 8 kV air conforming to IEC 61000-4-2 |
| Odpornost proti hitrim prehodnim pojavom | 2 kV conforming to IEC 61000-4-4 |
