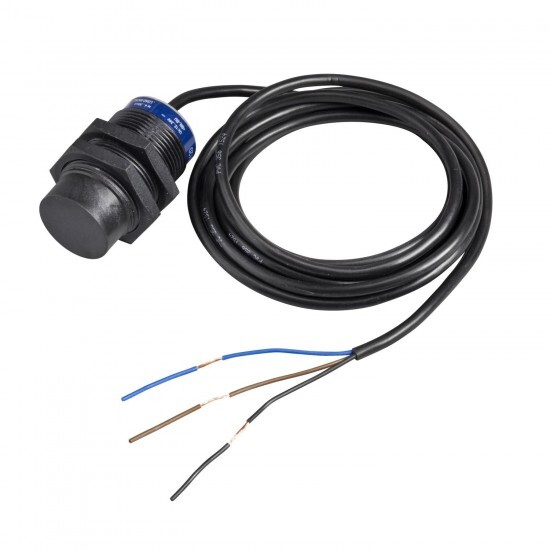

XS4P30AB120 Schneider Electric
XS4P30AB120 Schneider Electric
Opis
inductive sensor XS4 M30 - L53mm - PBT - Sn15mm - 12..24VDC - cable 2m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XS |
| [Us] Nazivna napajalna npetost | 12...24 V DC |
| size | 53 mm |
| Material | plastic |
| IP degree of protection | IP67 conforming to IEC 60529 |
| sensor design | cylindrical M30 |
| series name | Application |
| body type | fixed |
| electrical connection | cable |
| electrical circuit type | analog output |
| discrete output function | 1 NC |
| type of output signal | analogue |
| Dolžina kabla | 2 m |
| sensor name | XS4 |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 15 mm |
| sensor type | inductive proximity sensor |
| detector flush mounting acceptance | non flush mountable |
| output circuit type | DC |
| analogue output range | 4...20 mA |
| Komplementarno | |
| Višina | 30 mm |
| Teža izdelka | 0.1 kg |
| Poraba toka | 4 mA no-load |
| Omejitve napajalne napetosti | 10-38 V DC |
| thread type | M30 x 1.5 |
| length | 53 mm |
| Označevanje | CE |
| repeat accuracy | <= 3% of Sr |
| enclosure material | PBT |
| switching frequency | <= 300 Hz |
| sensing range | > 8...15 mm |
| wire insulation material | PvR |
| detection face | frontal |
| cable composition | 3 x 0.34 mm² |
| front material | PPS |
| threaded length | 32 mm |
| linearity error | +/- 2 mA |
| operating zone | 1.5-15 mm |
| maximum output current drift | 10 % |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| Certifikati izdelkov | UL CSA |
