XS1N18PA349L1 Schneider Electric
XS1N18PA349L1 Schneider Electric
Opis

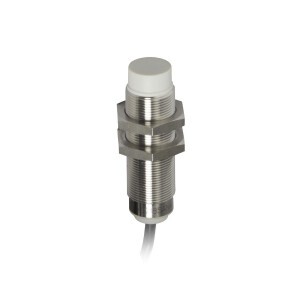

inductive sensor XS1 M18 - L39mm - brass - Sn10mm - 12..24VDC - cable 5m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XS |
| Aplikacija naprave | - |
| [Us] Nazivna napajalna npetost | 12...24 V DC with reverse polarity protection |
| size | 39 mm |
| Material | metal |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 IP69K conforming to DIN 40050 |
| sensor design | cylindrical M18 |
| series name | general purpose |
| body type | fixed |
| electrical connection | cable |
| enclosure material | nickel plated brass |
| discrete output type | PNP |
| discrete output function | 1 NO |
| type of output signal | discrete |
| Dolžina kabla | 5 m |
| sensor name | XS1 |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 10 mm |
| sensor type | inductive proximity sensor |
| detector flush mounting acceptance | flush mountable |
| switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| output circuit type | DC |
| Komplementarno | |
| Višina | 18 mm |
| Teža izdelka | 0.1 kg 0.22 kg |
| Poraba toka | 0...10 mA no-load |
| Omejitve napajalne napetosti | 10-36 V DC |
| thread type | M18 x 1 |
| maximum voltage drop | <2 V (closed) |
| length | 39 mm |
| Označevanje | CE |
| maximum delay response | 0.3 ms |
| switching frequency | <= 1000 Hz |
| sensing range | > 8...15 mm |
| differential travel | 1...15% of Sr |
| maximum delay recovery | 0.7 ms |
| maximum delay first up | 5 ms |
| wire insulation material | PvR |
| detection face | frontal |
| cable composition | 3 x 0.34 mm² |
| front material | PPS |
| status LED | output state: 1 LED (yellow) |
| threaded length | 28 mm |
| operating zone | 0-8 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-50 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| Certifikati izdelkov | UL CSA |
| Odporno proti udarcu | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
