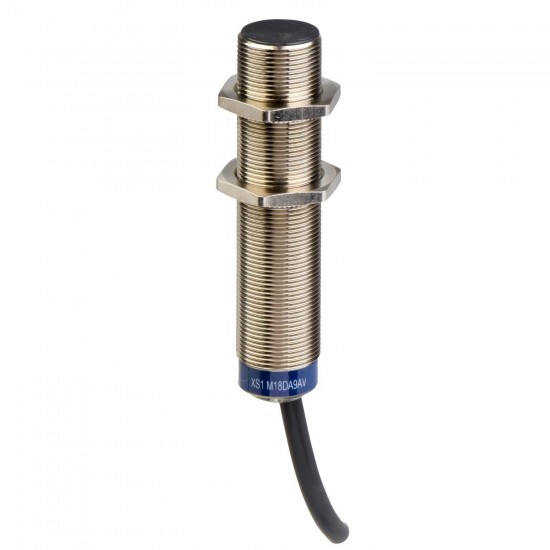

XS1M18DA9AV Schneider Electric
XS1M18DA9AV Schneider Electric
Opis
INDUCTIVE SENSOR - 48VDC - 100MA - XS +OPTIONS
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XS |
| [Us] Nazivna napajalna npetost | 12...24 V DC with reverse polarity protection |
| Material | metal |
| sensor design | cylindrical M18 |
| series name | general purpose |
| body type | fixed |
| electrical connection | cable |
| discrete output type | PNP and NPN |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XS1 |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 5 mm |
| sensor type | inductive proximity sensor |
| detector flush mounting acceptance | flush mountable |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| output circuit type | DC |
| Komplementarno | |
| Višina | 18 mm |
| Poraba toka | 0...10 mA no-load |
| Omejitve napajalne napetosti | 10-36 V DC |
| thread type | M18 x 1 |
| maximum voltage drop | <2.6 V (closed) |
| Označevanje | CE |
| enclosure material | nickel plated brass |
| maximum delay response | 0.15 ms |
| sensing range | > 4...8 mm |
| differential travel | 1...15% of Sr |
| maximum delay recovery | 0.35 ms |
| maximum delay first up | 5 ms |
| wire insulation material | PvR |
| detection face | frontal |
| cable composition | 4 x 0.22 mm² |
| front material | PPS |
| status LED | output state: 1 LED (yellow) |
| threaded length | 51 mm |
| operating zone | 0-4 mm |
| Okolje | |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| Certifikati izdelkov | CSA UL |
| Odporno proti udarcu | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
