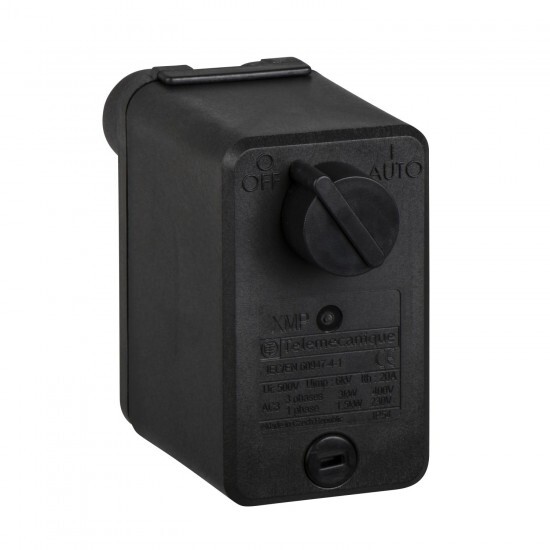

XMPE12B2131C Schneider
XMPE12B2131C Schneider
Opis
pressure sensor XMP - 12 bar- G 1/4 female - 2 NC- ON/OFF knob control
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XM |
| Prodaja na nedeljivo količino | 10 |
| contacts type and composition | 2 NC snap action |
| cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| electrical connection | screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm² |
| product specific application | bulk packaging |
| pressure sensor type | electromechanical pressure sensor |
| pressure switch type of operation | regulation between 2 thresholds |
| local display | without |
| fluid connection type | G 1/4 (female) conforming to ISO 228 |
| pressure sensor size | 12 bar |
| controlled fluid | air (0-70 °C) fresh water (0-70 °C) sea water (0-70 °C) |
| scale type | adjustable differential |
| electrical circuit type | power circuit |
| pressure sensor name | XMP |
| Komplementarno | |
| Višina | 138 mm |
| Teža izdelka | 0.45 kg |
| control type | ON/OFF knob |
| [Ui] Nazivna izolacijska trdnost | 500 V conforming to EN/IEC 60947-1 |
| electrical durability | 1000000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4 , 400 V AC 3 phases 500000 cycles 3 kW, operating rate <10 cyc/mn, load factor: 0.4 , 400 V AC 3 phases 600000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4 , 230 V AC 3 phases 700000 cycles 2.2 kW, operating rate <10 cyc/mn, load factor: 0.4 , 400 V AC 3 phases |
| mechanical durability | 1000000 cycles |
| Širina | 57 mm |
| Globina | 98 mm |
| terminals description ISO n°1 | (1-2)NC (3-4)NC |
| operating position | any position |
| maximum operating rate | 10 cyc/mn |
| repeat accuracy | 3.5 % |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 25 MOhm conforming to NF C 93-050 method A |
| terminal block type | 4 terminals |
| setting | nut |
| pressure actuator | diaphragm |
| possible differential minimum at low setting | 1 bar |
| adjustable range of switching point on falling pressure | 0.3-10.3 bar |
| materials in contact with fluid | chromated zinc alloy canvas covered nitrile |
| adjustment range high setting | 1.3-12 bar |
| type of decompression valve | straight valve instant connection |
| enclosure material | PA impregnated with fibreglass |
| possible differential minimum at high setting | 1.7 bar |
| possible differential maximum at high setting | 8.4 bar |
| destruction pressure | 30 bar |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP54 conforming to EN/IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | EAC |
| Standardi | CE EN/IEC 60947-4-1 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz) |
| electrical shock protection class | class I conforming to IEC 60536 |
