Opis

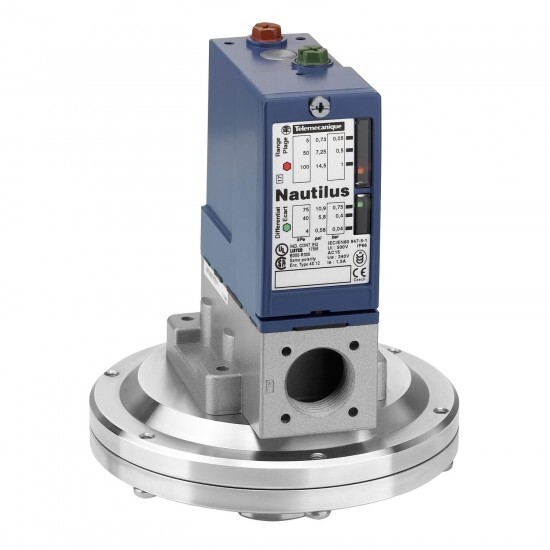

pressure switch XMLB 350 mbar - adjustable scale 2 thresholds - 1 C/O
Tehnične lastnosti
| Glavno | |
| [In] rated current | 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| Serija izdelka | OsiSense XM |
| Izdelek ali sestavni del | electromechanical pressure sensor |
| Kratko ime naprave | XMLB |
| contacts type and composition | 1 C/O |
| cable entry | cable gland 7-13 mm |
| electrical connection | screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| product specific application | - |
| pressure sensor type | electromechanical pressure sensor |
| pressure actuator | diaphragm |
| pressure switch type of operation | regulation between 2 thresholds |
| materials in contact with fluid | 304L stainless steel steel FPM, FKM |
| local display | with |
| fluid connection type | G 1/4 (female) conforming to ISO 228 |
| pressure sensor size | 0.35 bar |
| controlled fluid | air (0-160 °C) hydraulic oil (0-160 °C) |
| AWG gauge | AWG 20...AWG 14 |
| scale type | adjustable differential |
| electrical circuit type | control circuit |
| enclosure material | zinc alloy |
| maximum permissible accidental pressure | 2.25 bar |
| destruction pressure | 4.5 bar |
| adjustable range of switching point on falling pressure | 0.003-0.3 bar |
| adjustable range of switching point on rising pressure | 0.045-0.35 bar |
| possible differential maximum at high setting | 0.3 bar |
| Komplementarno | |
| Višina | 162 mm |
| Teža izdelka | 2.575 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| mechanical durability | 4000000 cycles |
| Širina | 110 mm |
| Globina | 110 mm |
| terminals description ISO n°1 | (13-14-11-12)OF |
| contacts material | silver contacts |
| short-circuit protection | 10 A cartridge fuse, type gG (gl) |
| maximum operating rate | 120 cyc/mn |
| repeat accuracy | 2 % |
| maximum resistance across terminals | 25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A |
| terminal block type | 4 terminals |
| maximum permissible pressure - per cycle | 1.25 bar |
| setting | external |
| possible differential minimum at low setting | 0.042 bar (- 8 mbar, + 3 mbar) |
| possible differential minimum at high setting | 0.05 bar (+/- 8 mbar) |
| auxiliary contacts operation | snap action |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to EN/IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL LROS (Lloyds register of shipping) BV EAC CSA CCC |
| Standardi | CE CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 |
| Odporno proti udarcu | 30 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 2 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| electrical shock protection class | class I conforming to IEC 1140 class I conforming to IEC 536 class I conforming to NF C 20-030 |
| Zaščitna obdelava | TC standard version |
| operating position | any position |
