XMLA035P2S12 Schneider
XMLA035P2S12 Schneider
Opis

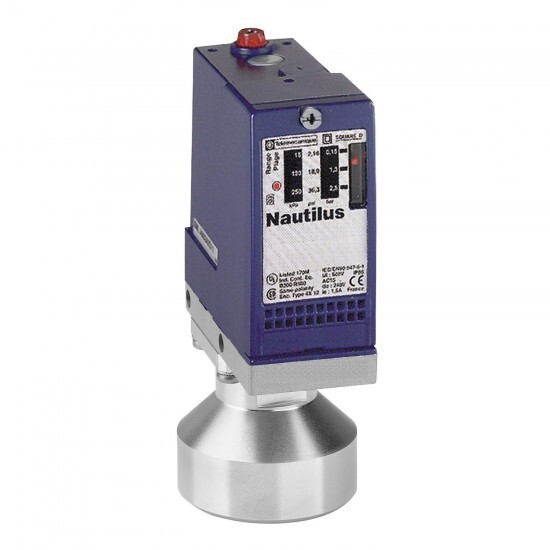

pressure switch XMLA 35 bar - fixed scale 1 threshold - 1 C/O
Tehnične lastnosti
| Glavno | |
| [In] rated current | 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| Serija izdelka | OsiSense XM |
| Izdelek ali sestavni del | electromechanical pressure sensor |
| Kratko ime naprave | XMLA |
| contacts type and composition | 1 C/O |
| cable entry | cable gland 7-13 mm |
| electrical connection | screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| product specific application | - |
| pressure sensor type | electromechanical pressure sensor |
| pressure actuator | diaphragm |
| pressure switch type of operation | detection of 1 single threshold |
| materials in contact with fluid | FPM, FKM steel |
| local display | with |
| fluid connection type | G 1 1/4 (female) conforming to ISO 228 |
| pressure sensor size | 35 bar |
| controlled fluid | viscous product (0-160 °C) |
| AWG gauge | AWG 20...AWG 14 |
| scale type | fixed differential |
| electrical circuit type | control circuit |
| enclosure material | zinc alloy |
| maximum permissible accidental pressure | 80 bar |
| destruction pressure | 160 bar |
| adjustable range of switching point on falling pressure | 0.25-33.75 bar |
| adjustable range of switching point on rising pressure | 1.5-35 bar |
| Komplementarno | |
| Višina | 130 mm |
| Teža izdelka | 0.695 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| mechanical durability | 5000000 cycles |
| Širina | 50 mm |
| Globina | 76 mm |
| terminals description ISO n°1 | (13-14-11-12)OF |
| contacts material | silver contacts |
| short-circuit protection | 10 A cartridge fuse, type gG (gl) |
| maximum operating rate | 120 cyc/mn |
| repeat accuracy | 2 % |
| maximum resistance across terminals | 25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A |
| terminal block type | 4 terminals |
| natural differential at high setting | 1.25 bar (+/- 0.25 bar) |
| maximum permissible pressure - per cycle | 45 bar |
| setting | external |
| natural differential at low setting | 1.25 bar (+/- 0.25 bar) |
| auxiliary contacts operation | snap action |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to EN/IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CSA UL EAC BV CCC LROS (Lloyds register of shipping) |
| Standardi | CSA C22.2 No 14 CE EN/IEC 60947-5-1 UL 508 |
| Odporno proti udarcu | 50 gn conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| electrical shock protection class | class I conforming to IEC 1140 class I conforming to IEC 536 class I conforming to NF C 20-030 |
| Zaščitna obdelava | TC standard version |
| operating position | any position |
