Opis

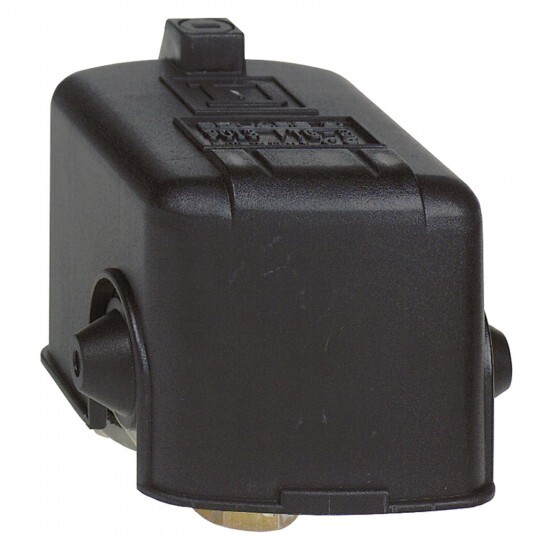

pressure switch FYG 7 bar - adjustable scale 2 thresholds - 2NC
Tehnične lastnosti
| Glavno | |
| [In] rated current | 10 A at 250 V AC conforming to EN 60730-1 |
| Serija izdelka | OsiSense XM |
| contacts type and composition | 2 NC snap action |
| cable entry | 2 cable entries with grommet |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm² |
| product specific application | - |
| pressure sensor type | electromechanical pressure sensor |
| pressure switch type of operation | regulation between 2 thresholds |
| local display | without |
| fluid connection type | G 1/4 (female) conforming to ISO 228 |
| pressure sensor size | 7 bar |
| controlled fluid | fresh water (0-70 °C) sea water (0-70 °C) |
| scale type | adjustable differential |
| electrical circuit type | power circuit |
| pressure sensor name | FYG |
| short-circuit protection | 20 A cartridge fuse, type gG |
| setting | internal |
| Komplementarno | |
| Višina | 94 mm |
| Teža izdelka | 0.34 kg |
| [Ui] Nazivna izolacijska trdnost | 500 V conforming to EN/IEC 60947-1 |
| electrical durability | 100000 cycles, operating rate <10 cyc/mn |
| mechanical durability | 1000000 cycles |
| Širina | 72 mm |
| Globina | 102 mm |
| terminals description ISO n°1 | (3-4)NC (1-2)NC |
| operating position | any position |
| maximum operating rate | 10 cyc/mn |
| repeat accuracy | 2 % |
| terminal block type | 4 terminals |
| maximum permissible pressure - per cycle | 8.75 bar |
| pressure actuator | diaphragm |
| possible differential minimum at low setting | 1.2 bar |
| adjustable range of switching point on falling pressure | 0.5-5.4 bar |
| materials in contact with fluid | nylon 6/6 nitrile zinc plated steel |
| enclosure material | PS |
| possible differential minimum at high setting | 1.6 bar |
| possible differential maximum at high setting | 2.7 bar |
| destruction pressure | 20 bar |
| adjustable range of switching point on rising pressure | 2.8-7 bar |
| possible differential maximum at low setting | 2.3 bar |
| motor power kW | 0.75 kW/1 hp at 110 V AC, 1 phase 1.1 kW/1.5 hp at 110 V AC, 3 phases 1.5 kW/2 hp at 230 V AC, 1 phase 1.5 kW/2 hp at 400 V AC, 1 phase 2.2 kW/3 hp at 230 V AC, 3 phases 2.2 kW/3 hp at 400 V AC, 3 phases |
| possible differential minimum at middle setting | 1.4 bar |
| possible differential maximum at middle setting | 2.5 bar |
| maximum permissible accidental pressure | 15 bar |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-45 °C |
| IP stopnja zaščite | IP20 conforming to EN/IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -30-80 °C |
| Standardi | CE EN/IEC 60730 |
| electrical shock protection class | class I conforming to IEC 536 |
| Zaščitna obdelava | TC |
