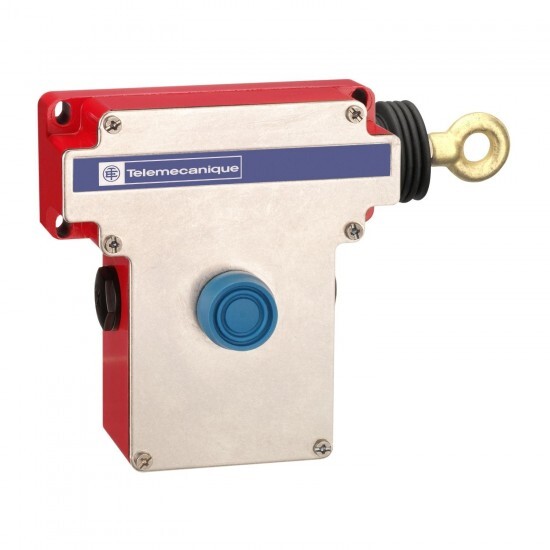

e-stop rope pull switch XY2CE - RH side -2NC+2NO - Booted pushbutton
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Preventa XY2 |
| Izdelek ali sestavni del | latching emergency stop rope pull switch |
| Kratko ime naprave | XY2CE |
| overvoltage category | class I conforming to EN/IEC 61140 class I conforming to NF C 20-030 |
| housing colour | red RAL 3000 |
| Komplementarno | |
| Teža izdelka | 1.45 kg |
| Povezave - terminali | screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| [Ui] Nazivna izolacijska trdnost | 500 V (pollution degree 3) conforming to EN/IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
| mechanical durability | 60000 cycles |
| Kompatibilnostna koda | XY2CE |
| local signalling | without pilot light |
| tightening torque | 0.8-1.2 N.m |
| terminals description ISO n°1 | (13-14)NO (21-22)NC |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60269 |
| positive opening | with conforming to EN/IEC 60947-5-1 |
| contacts type and composition | 2 NC + 2 NO |
| contact operation | slow-break |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| Označevanje | CE |
| [Ithe] conventional enclosed thermal current | 10 A |
| maximum resistance across terminals | 25 MOhm conforming to EN/IEC 60255-7 category 3 25 MOhm conforming to NF C 93-050 method A |
| body material | zamak |
| safety reliability data | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| safety level | can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| reset | by booted push-button |
| number of cables | 1 |
| cable entry number | 3 plain hole for Pg 13.5 or ISO M20 cable gland |
| trigger cable maximum length | 70 m |
| distance between cable supports | 5-5 m |
| trigger cable anchor point | RH side |
| cover material | stainless steel |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL category NISD emergency stop devices CSA CCC |
| Standardi | EN/IEC 60947-5-1 work equipment directive 2009/104/EC EN/IEC 60204-1 UL 508 EN/IEC 60947-5-5 EN/ISO 13850 CSA C22.2 No 14 machinery directive 2006/42/EC |
| Odporno proti udarcu | 50 gn 11 ms conforming to EN/IEC 60068-2-27 |
| Odpornost proti vibracijam | 10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6 |
| Zaščitna obdelava | TC |
