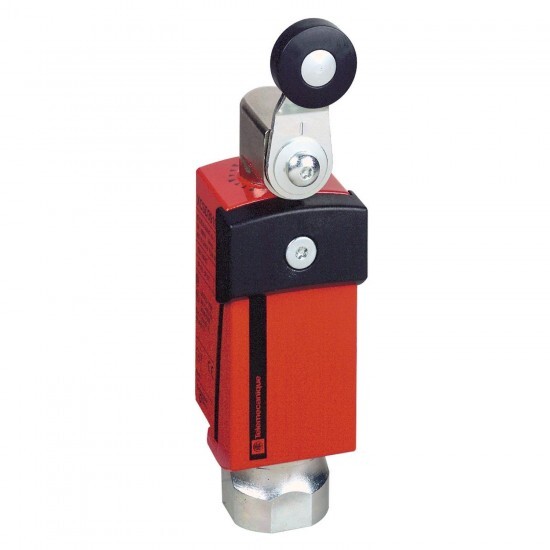

safety limit switch - metal - rotary lever - 2NC + 1NO - 1 entry tapped 1/2" NPT
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Preventa Safety detection |
| Izdelek ali sestavni del | safety limit switch |
| head type | rotary head |
| type of operator | thermoplastic roller lever |
| Material | metal |
| contacts type and composition | 1 NC + 1 NC + 1 NO |
| contact operation | snap action |
| cable entry | 1 entry tapped for 1/2" NPT |
| protection technology | plastic protective cover, secured by 5-lobe socket head safety screw |
| component name | XCSD |
| design | compact |
| Komplementarno | |
| Višina | 122-122 mm |
| Teža izdelka | 0.255 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 400 V (pollution degree 3) conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| mechanical durability | 10000000 cycles |
| Širina | 34 mm |
| Globina | 35 mm |
| short-circuit protection | 6 A cartridge fuse type gG (gl) |
| positive opening | with NC contact |
| electrical connection | terminal |
| [Ithe] conventional enclosed thermal current | 6 A |
| switch actuation | by 30° cam |
| repeat accuracy | 0.1 mm on tripping points, 1 million operating cycles for head with end plunger |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| positive opening minimum torque | 0.25 N.m |
| maximum actuation speed | 1.5 m/s |
| body material | zamak |
| contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| minimum torque for tripping | 0.1 N.m |
| enclosure material | plastic |
| clamping connection capacity | 1 x 0.34...2 x 0.75 mm² |
| head material | zamak |
| number of poles | 3 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| IK stopnja zaščite | IK06 conforming to EN 50102 |
| Certifikati izdelkov | CSA UL |
| Standardi | EN/IEC 60204-1 EN/IEC 60947-5-1 UL 508 EN 1088/ISO 14119 CSA C22.2 No 14 |
| Odporno proti udarcu | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class I conforming to NF C 20-030 class I conforming to EN/IEC 61140 |
| Zaščitna obdelava | TC |
| safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| safety level | can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
