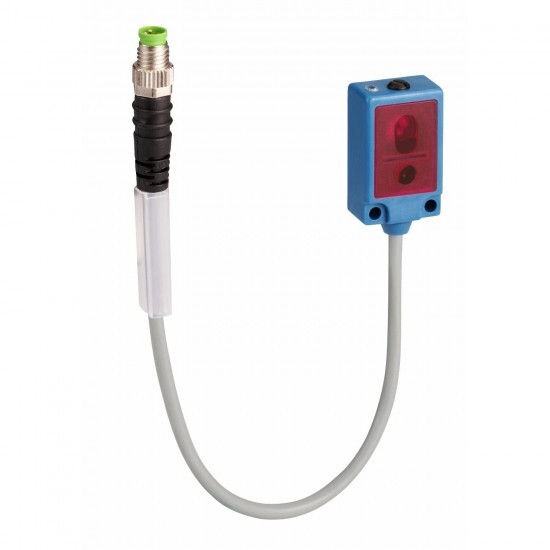

XUYPSCO989SN Schneider
XUYPSCO989SN Schneider
Opis
photo-electric sensor - XUY 989 - BGS - Sn 0.08m - 12..24VDC - M8
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | miniature |
| series name | Application |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application | conveyor system and access control series |
| discrete output type | NPN |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XUY |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 1-1 m polarised reflex 4-4 m thru beam 0.08-0.08 m diffuse with background suppression 0.25-0.25 m diffuse with adjustable sensitivity |
| emission | red LED, pulsed |
| sensing range | > 0...0.3 m |
| detection system | diffuse with background suppression |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.044 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | < 25 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <2 V at 100 mA (closed state) <1 V at 10 mA (closed state) |
| enclosure material | ABS |
| maximum delay response | 1 ms |
| switching frequency | 500 Hz |
| lens material | PMMA |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| output type | solid state |
| cover material | PUR |
| pulse frequency | 6 kHz |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-50 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 IP67 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-80 °C |
| Certifikati izdelkov | cULus CE |
