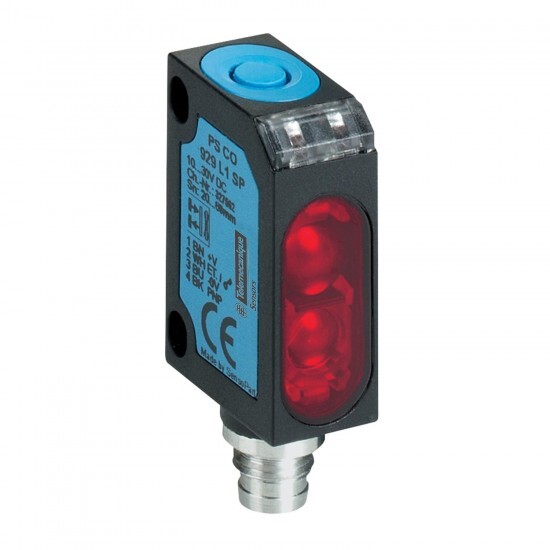

XUYPSCO929L2SP Schneider Electric
XUYPSCO929L2SP Schneider Electric
Opis
photo-electric sensor - XUY 929 - BGS - laser - Sn 110mm - 12..24VDC - M8
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | miniature |
| series name | Application assembly |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application | monitoring of small parts on production machine setting up of sensors |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XUY |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0.03-0.11 m |
| emission | red LED, pulsed - class 2 conforming to IEC 825-1 |
| sensing range | > 0...0.3 m |
| detection system | diffuse with background suppression |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.056 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | < 25 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <2.4 V (closed state) |
| enclosure material | ABS |
| maximum delay response | 3 µs |
| switching frequency | 1000 Hz |
| status LED | supply on/dirty: 1 LED (green) output state: 1 LED (yellow) |
| setting-up | using teach button or remote teaching |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| output type | solid state |
| spot diameter | <= 0.7 mm |
| pulse frequency | 5 kHz |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-80 °C |
| Certifikati izdelkov | CE cULus |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| immunity to ambient light | 5000 lux |
