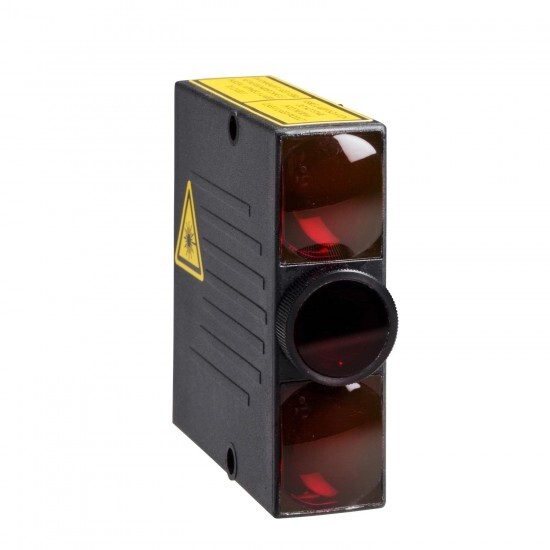

XUYPS1LCO965S Schneider Electric
XUYPS1LCO965S Schneider Electric
Opis
photoelectric sensor - XUY - BGS - laser - Sn 300 mm - 12..24VDC - M8
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | compact |
| series name | application, materials handling |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application | control of level monitoring of small parts on production machine monitoring for crack on a component suppression of a background detection of components on a printed circuit |
| discrete output type | PNP and NPN |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XUY |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 50-300 mm |
| emission | red laser, pulsed, wavelength: 675 nm - class 2 |
| sensing range | > 0...0.3 m |
| detection system | diffuse with background suppression |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.081 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | 35 mA |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <2 V (closed state) |
| enclosure material | glass impregnated nylon |
| maximum delay response | 40 ms for output circuit depending on wiring |
| switching frequency | > 5 kHz |
| maximum delay recovery | 150 µs |
| status LED | output state: 1 LED (green) NC function: 1 LED (none) NO function: 1 LED (red) time delay active: 1 LED (red) |
| lens material | PMMA |
| setting-up | manual adjustment of focusing |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| output type | solid state |
| spot diameter | 0 mm manual adjustment |
| minimum object diameter for detection | 0.5 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-50 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-60 °C |
| Certifikati izdelkov | cULus CE |
| immunity to ambient light | 10000 lux natural light 500 lux incandescent bulb |
