XUYLC2001 Schneider Electric
XUYLC2001 Schneider Electric
Opis

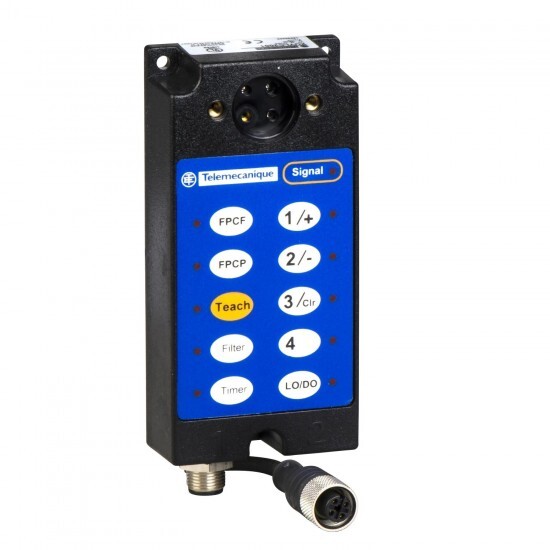

photo-electric sensor - XUY - ampli for fibre - 1 color - 24VDCM12
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| sensor design | fiber design |
| series name | Application |
| sensor name | XUY |
| emission | red LED |
| specific application of photoelectric detector | sorting out of coloured parts detection of coloured wires detection of little marks and coloured tags detection of translucent coloured parts detection of one colour quality control of lids colour or presence of labels |
| Komplementarno | |
| Material | plastic |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| Poraba toka | 120 mA no-load |
| Omejitve napajalne napetosti | 21.6-26.4 V DC |
| electrical connection | 1 male connector M12, 4 pins |
| maximum voltage drop | <0.5 V at 10 mAat low level <2.2 V at 100 mA |
| cable length | 2 m |
| enclosure material | polycarbonate strong housing |
| maximum delay response | 1 ms for XUYFPCF. 20 ms for XUYFPCP. |
| switching frequency | 25 Hz for XUYFPCP. 500 Hz for XUYFPCF. |
| maximum delay recovery | 1 ms XUYFPCF. 20 ms XUYFPCP. |
| setting-up | sensitivity adjustment with teach mode |
| type of output signal | discrete |
| discrete output type | 1 PNP/NPN |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-40 °C |
| IP stopnja zaščite | IP65 |
| Temperatura okoliškega zraka za skladiščenje | -20-60 °C |
| Certifikati izdelkov | cULus CE |
| immunity to ambient light | 3000 lux incandescent bulb 5000 lux natural light |
