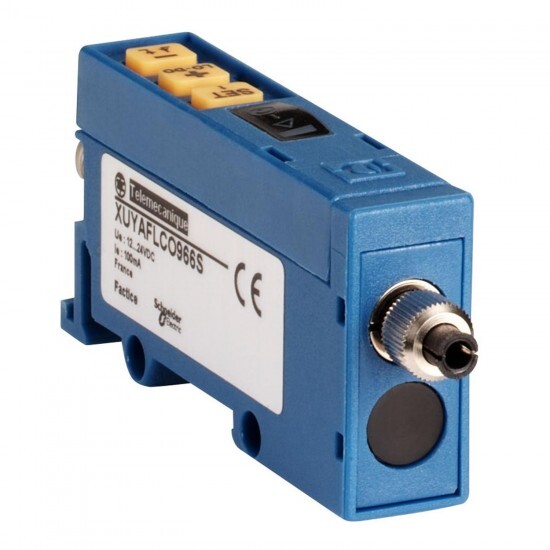

XUYAFLCO966S Schneider Electric

photo-electric sensor - XUY - ampli for fibre - illumination - 12..24VDC - M8

Glavno
Serija izdelka	OsiSense XU
Material	plastic
sensor design	fiber design
series name	Application assembly
product specific application	verifying operation of indicator lights on electrical appliances testing car headlights on production line
type of output signal	discrete
sensor name	XUY
wiring technique	4-wire
[Sn] nominal sensing distance	0-0 mm depending on plastic fibres diameter 2.2 mm used
detection system	diffuse
electronic sensor type	photo-electric sensor
Komplementarno
Teža izdelka	0.054 kg
[Us] rated supply voltage	24 V DC with reverse polarity protection
Poraba toka	< 40 mA
Omejitve napajalne napetosti	10-30 V DC
electrical connection	1 male connector M8, 4 pins
maximum voltage drop	<2 V (closed state)
voltage state 0 guaranteed	< 1.4 V
voltage state 1 guaranteed	> 3 V
enclosure material	polycarbonate
maximum delay response	100 ms
switching frequency	< 5 Hz
maximum delay recovery	100 ms
status LED	output signal: 1 LED (green) limit of detection: 1 LED (red) time delay active: 1 LED (red)
setting-up	with sensitivity adjustment
switching capacity in mA	100 mA (overload and short-circuit protection)
output type	solid state
time delay range	0...5 s adjustment increments delay
discrete output function	1 NO or 1 NC programmable
supply circuit type	DC
Okolje
Temperatura okoliškega zraka za delovanje	0-60 °C
IP stopnja zaščite	IP65 conforming to IEC 60529
Temperatura okoliškega zraka za skladiščenje	-20-80 °C
Certifikati izdelkov	CE
