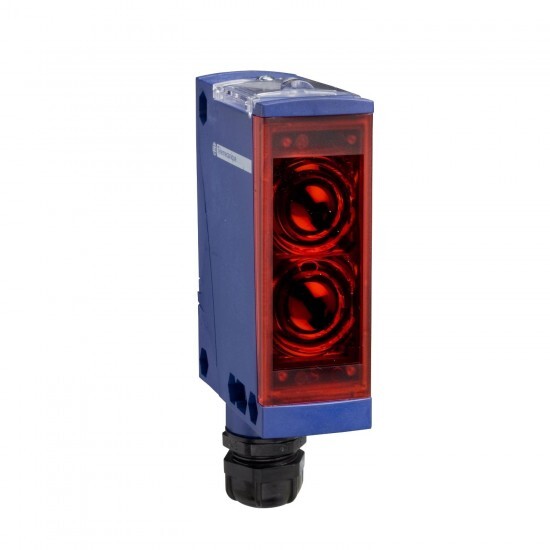

XUX8AKSAT16 Schneider Electric
XUX8AKSAT16 Schneider Electric
Opis
photo-electric sensor - XUX - BGS - Sn 2m - 12..24VDC - terminals
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | compact 92 x 71 |
| series name | general purpose single mode |
| electrical connection | screw-clamp terminals, 1 x 0.75...1 x 1.5 mm² |
| product specific application | long sensing distance with high accuracy |
| discrete output type | PNP or NPN |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XUX |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 2-2 m |
| emission | infrared |
| sensing range | > 1...5 m |
| detection system | diffuse with background suppression |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.2 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | 35 mA no-load |
| Omejitve napajalne napetosti | 10-36 V DC |
| cable entry | ISO 16 cable gland, cable outer diameter: 7-10 mm |
| maximum voltage drop | <1.5 V (closed state) |
| enclosure material | PC |
| maximum delay response | 3.5 ms |
| switching frequency | 150 Hz |
| maximum delay recovery | 2.5 ms |
| maximum delay first up | 200 ms |
| status LED | supply on: 1 LED (green) instability: 1 LED (red) output state: 1 LED (yellow) |
| lens material | PMMA |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP30 conforming to IEC 60529 (with cover open) IP65 conforming to IEC 60529 (double insulation) IP67 conforming to IEC 60529 (double insulation) |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CE CSA UL |
| Odporno proti udarcu | 10 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6 |
