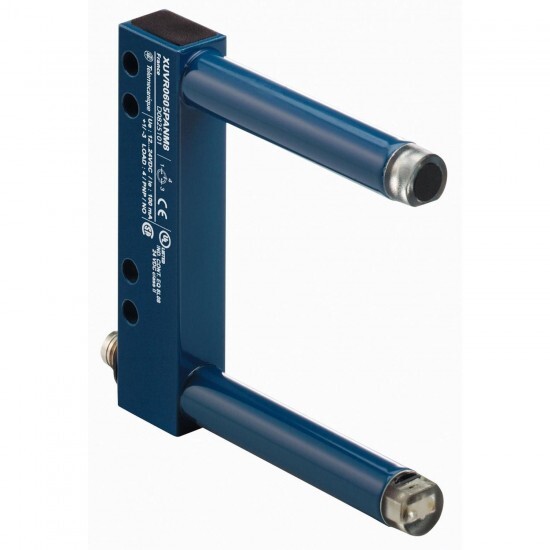

XUVR0605PANM8 Schneider Electric
XUVR0605PANM8 Schneider Electric
Opis
photo-electric sensor - XUV - fork - 50X60mm - 12..24VDC - M8
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal/plastic |
| sensor design | fork |
| series name | general purpose |
| electrical connection | 1 male connector M8, 3 pins |
| product specific application | detection on small conveyor |
| discrete output type | PNP |
| discrete output function | 1 NO |
| sensor name | XUVR |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 50-50 mm |
| emission | red LED, modulated |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| passage width | 50 mm |
| passage depth | 60 mm |
| Komplementarno | |
| Teža izdelka | 0.19 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | < 20 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| enclosure material | painted aluminium and polyamide/glass |
| switching frequency | 4000 Hz |
| status LED | output state: 1 LED (yellow) |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| output type | solid state |
| type of output signal | discrete |
| spot diameter | 0.8 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-60 °C |
| IP stopnja zaščite | IP65 IP67 |
| Temperatura okoliškega zraka za skladiščenje | -40-80 °C |
| Certifikati izdelkov | UL CSA CE |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| immunity to ambient light | 10000 lux natural light 5000 lux incandescent bulb |
