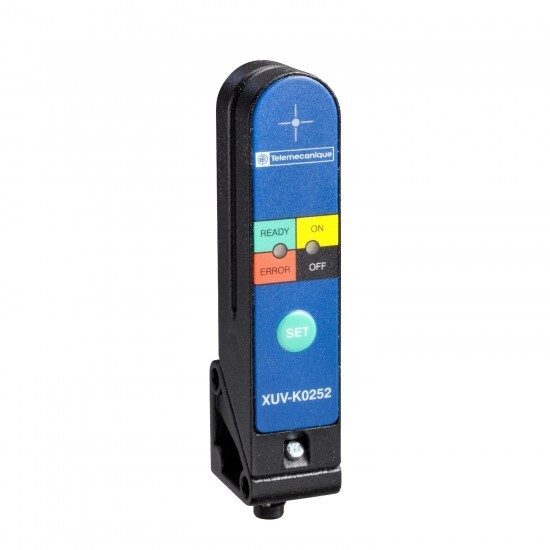

XUVK0252VS Schneider Electric
XUVK0252VS Schneider Electric
Opis
photoelectric sensor - thru-beam - Sn 2 mm - NO or NC - M8 connector
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | fork |
| series name | Application packaging |
| electrical connection | 1 male connector M8 adjustable through 90°, 4 pins |
| product specific application | detection of labels |
| discrete output type | PNP and NPN |
| discrete output function | 2 NO/NC programmable |
| sensor name | XUV |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 2-2 mm |
| emission | red or green |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| passage width | 2 mm |
| passage depth | 50 mm |
| type of setting | without |
| Komplementarno | |
| Višina | 20 mm |
| Teža izdelka | 0.085 kg |
| Širina | 20 mm |
| Globina | 90 mm |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | <= 50 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| enclosure material | zinc alloy |
| maximum delay response | 0.1 ms |
| switching frequency | <= 25 kHz |
| maximum delay recovery | 0.1 ms |
| maximum delay first up | 30 ms |
| status LED | sensor ready: 1 LED (green) read error: 1 LED (red) output state: 1 LED (yellow) |
| lens material | glass |
| setting-up | teach mode |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| type of output signal | discrete |
| output clamping resistor | 10 kOhm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-55 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-70 °C |
| Certifikati izdelkov | CE |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
