XUVH1424866 Schneider Electric
XUVH1424866 Schneider Electric
Opis

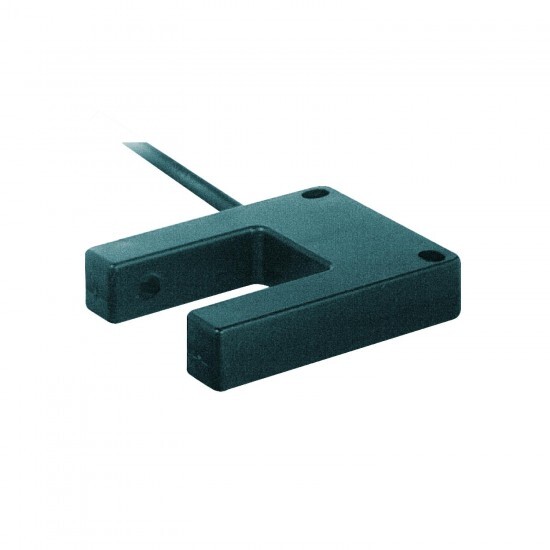

photo-electric sensor - XUV - fork - handling - 30X30mm - 12..24VDC - cable 2m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | fork |
| series name | Application material handling |
| electrical connection | cable |
| product specific application | detection of flags in lifts/transtockers |
| discrete output type | PNP |
| discrete output function | 1 NO |
| Dolžina kabla | 2 m |
| sensor name | XUV |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 30-30 mm |
| emission | infrared |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| passage width | 30 mm |
| passage depth | 40 mm |
| Komplementarno | |
| Višina | 59 mm |
| Teža izdelka | 0.13 kg |
| Širina | 14 mm |
| Globina | 68 mm |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| Poraba toka | <= 20 mA no-load |
| Omejitve napajalne napetosti | 19-38 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| cable outer diameter | 5 mm |
| enclosure material | ABS/PC |
| maximum delay response | 0.5 ms |
| switching frequency | <= 1 kHz |
| maximum delay recovery | 0.5 ms |
| maximum delay first up | 30 ms |
| wire insulation material | PvR |
| cable composition | 3 x 0.34 mm² |
| status LED | output state: 1 LED (red) |
| lens material | PMMA |
| setting-up | without sensitivity adjustment |
| switching capacity in mA | <= 150 mA (overload and short-circuit protection) |
| output type | solid state |
| type of output signal | discrete |
| output function governance | dark |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-55 °C |
| IP stopnja zaščite | IP54 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-70 °C |
| Certifikati izdelkov | CE |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1 mm (f = 10-42 Hz) conforming to IEC 60068-2-6 |
