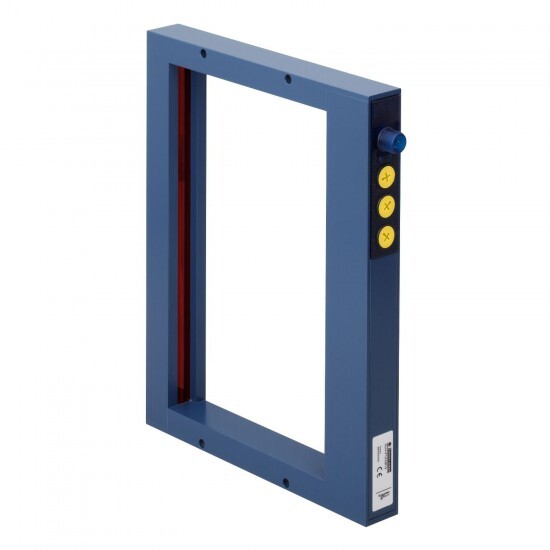

XUVF120M12 Schneider Electric
XUVF120M12 Schneider Electric
Opis
photo-electric sensor - XUV - frame - 200X120mm - 12..24VDC - M12
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | frame |
| series name | Application material handling |
| electrical connection | 1 male connector M12, 4 pins |
| product specific application | static detection of passage of objects dynamic detection of passage of objects |
| discrete output type | PNP or NPN |
| discrete output function | 1 NO or 1 NC programmable |
| sensor name | XUV |
| wiring technique | 4-wire |
| emission | infrared |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| minimum object diameter for detection | dynamic mode: 4 mm (0.1-15 m/s) static mode: 6 mm |
| way dimensions of optical frame | 200 x 120 mm |
| Komplementarno | |
| Višina | 230 mm |
| Teža izdelka | 1.06 kg |
| Širina | 205 mm |
| Globina | 25 mm |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| Poraba toka | <= 150 mA no-load |
| Omejitve napajalne napetosti | 18-30 V DC |
| maximum voltage drop | <2 V (closed state) |
| enclosure material | painted aluminium |
| switching frequency | > 5000 Hz |
| maximum delay recovery | 0.1 ms |
| maximum delay first up | 100 ms |
| status LED | alarm: 1 LED (red) output state: 1 LED (amber) |
| lens material | altuglass |
| setting-up | sensitivity adjustment with potentiometer |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| add on output | with alarm output |
| type of output signal | discrete |
| time delay range | 0...5 s off-delay delay |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -20-80 °C |
| Certifikati izdelkov | CE cULus |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| immunity to ambient light | 3000 lux incandescent light 10000 lux sunlight |
