XUK8AKSNM12 Schneider Electric
XUK8AKSNM12 Schneider Electric
Opis

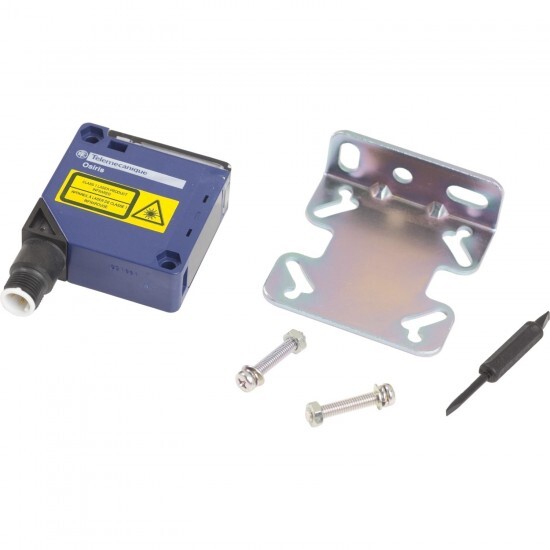

photo-electric laser sensor - XUK - BGS - Sn 1m - 12..24VDC - M12
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | plastic |
| sensor design | compact 50 x 50 |
| series name | general purpose single mode |
| electrical connection | 1 male connector M12, 4 pins |
| product specific application | - |
| discrete output type | PNP or NPN |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| sensor name | XUK |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 1-1 m diffuse with background suppression |
| emission | infrared laser, modulated diffuse with background suppression class 1 |
| sensing range | > 0.3...1 m |
| detection system | diffuse with background suppression |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Višina | 50 mm |
| Teža izdelka | 0.035 kg |
| Širina | 18 mm |
| Globina | 50 mm |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | <= 30 mA no-load |
| Omejitve napajalne napetosti | 10-36 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| enclosure material | PC |
| maximum delay response | 2 ms |
| switching frequency | <= 250 Hz |
| maximum delay recovery | 2 ms |
| maximum delay first up | 300 ms |
| wire insulation material | PVC |
| status LED | 1 LED (yellow) for output state 1 LED (green) for supply |
| lens material | PMMA |
| setting-up | sensitivity adjustment by potentiometer |
| maximum sensing distance | 1 m diffuse with background suppression |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| kit composition | with XUZA51 bracket fixing |
| minimum object diameter for detection | 2 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| IP stopnja zaščite | IP65 double insulation conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -30-70 °C |
| Certifikati izdelkov | CE Ecolab |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
