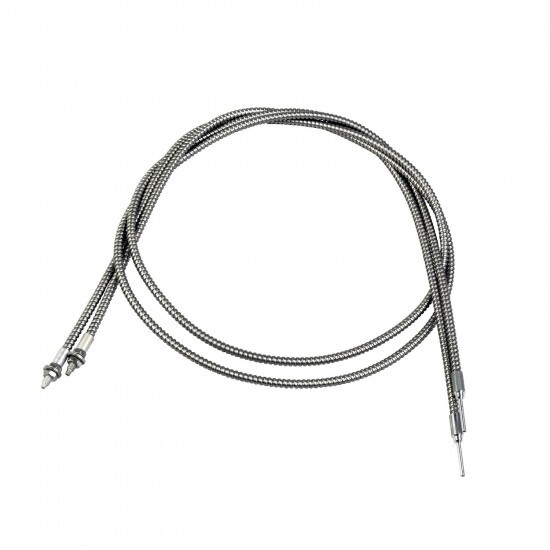

XUFS2020 Schneider
XUFS2020 Schneider
Opis
glass fibre optic for sensor - thru-beam - high temp - metal - 1m - Sn200mm
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| sensor name | XUF |
| [Sn] nominal sensing distance | 0.2-0.2 m 0.2-0.2 m XUFZ02 1.5-1.5 m XUFZ01 |
| end fitting type | , standard thread end fitting |
| Komplementarno | |
| Teža izdelka | 0.07 kg |
| thread type | M4 |
| external diameter | 5 mm |
| detection system | thru beam |
| product destination | XUDA |
| optic fiber use | high temperatures |
| sheath material | PE |
| optic fiber length | 1 m |
| sensor design | fiber design |
| optic fiber material | glass |
| electronic sensor type | photo-electric sensor |
| optic fiber core | 1 x Ø 1 mm |
| minimum bending radius | 90 mm |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-180 °C |
| IP stopnja zaščite | IP64 conforming to IEC 60529 IP641 conforming to NF C 20-010 |
| Temperatura okoliškega zraka za skladiščenje | -40-180 °C |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | +/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
