XUBTSNSNL2 Schneider Electric
XUBTSNSNL2 Schneider Electric
Opis

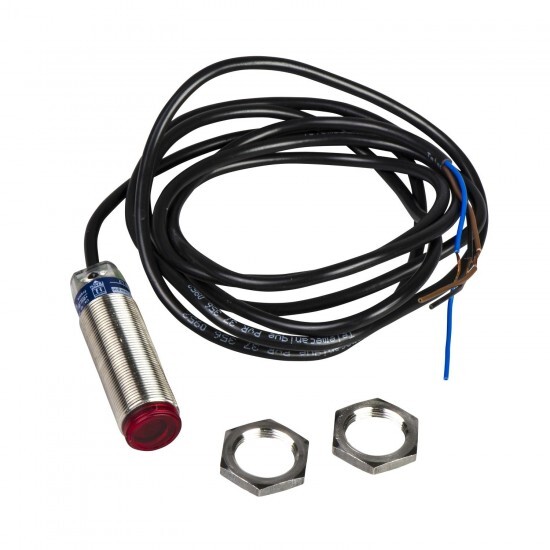

photo-electric sensor - XUBT - polarised - Sn 1.4m - 12..24VDC - cable 2m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | cylindrical M18 |
| series name | Application packaging |
| electrical connection | cable |
| product specific application | detection of transparent object |
| discrete output type | NPN |
| discrete output function | 1 NO or 1 NC programmable |
| Dolžina kabla | 2 m |
| sensor name | XUBT |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0-1.4 m with reflector XUZ C50/C50HP |
| emission | coaxial polarised red reflex |
| line of sight type | axial |
| sensing range | > 1...5 m |
| detection system | reflex |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.135 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | 45 mA no-load |
| Omejitve napajalne napetosti | 10-32 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| enclosure material | stainless steel : 304 CU |
| maximum delay response | 500 ms |
| switching frequency | 1000 Hz |
| maximum delay recovery | 500 ms |
| maximum delay first up | 200 ms |
| wire insulation material | PvR |
| status LED | supply on: 1 LED (green) stability: 1 LED (red) output state: 1 LED (yellow) |
| lens material | PMMA |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| output type | solid state |
| type of output signal | discrete |
| kit composition | sensor reflector XUZC50HP |
| blind zone | 0 mm |
| spot diameter | 37 mm |
| beam angle | 1.5 ° |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-55 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 (double insulation) IP67 conforming to IEC 60529 (double insulation) IP69K conforming to DIN 40050 (double insulation) |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CE CSA UL |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
