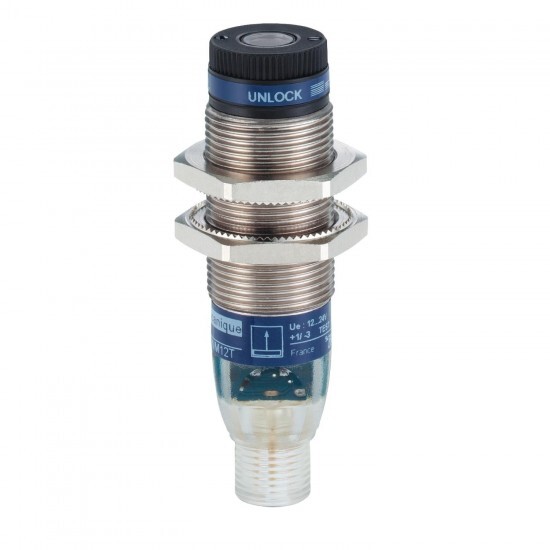

XUBLBKCNM12T Schneider Electric
XUBLBKCNM12T Schneider Electric
Opis
photo-electric sensor - XUB - emitter - laser - 12..24VDC - M12
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | cylindrical M18 |
| series name | Application material handling |
| electrical connection | 1 male connector M12, 4 pins |
| product specific application | - |
| sensor name | XUB |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0-100 m thru beam need a receiver |
| emission | red laser thru beam class 1 670 nm conforming to IEC 60825-1 |
| sensing range | > 30 m |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor transmitter |
| Komplementarno | |
| Teža izdelka | 0.06 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | 25 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| length | 66 mm |
| enclosure material | nickel plated brass |
| maximum delay response | 0.4 ms |
| switching frequency | <= 1500 Hz |
| maximum delay recovery | 0.4 ms |
| maximum delay first up | 80 ms |
| diameter | 18 mm |
| status LED | 1 LED (green) for supply on |
| lens material | PMMA |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| add on input | test by emission breaking |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-45 °C |
| IP stopnja zaščite | IP67 double insulation conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL CE CSA |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
