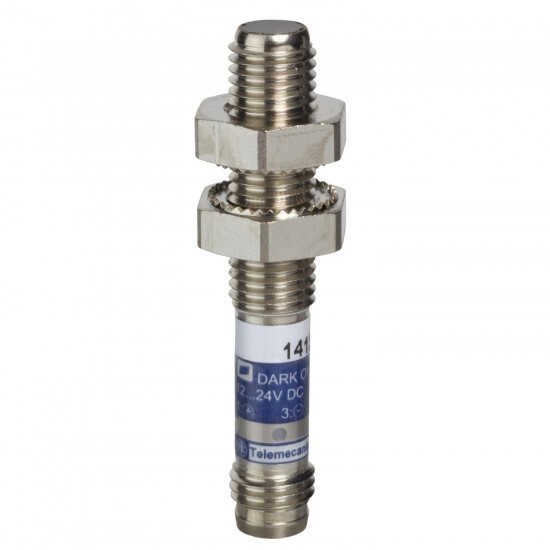

XUAH0525S Schneider Electric
XUAH0525S Schneider Electric
Opis
photo-electric sensor - XUA - diffuse - Sn 0.05m - 12..24VDC - M8
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | cylindrical M8 |
| series name | Application assembly |
| electrical connection | 1 male connector M8, 3 pins |
| product specific application | - |
| discrete output type | PNP |
| discrete output function | 1 NC |
| type of output signal | discrete |
| sensor name | XUA |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0.05-0.05 m diffuse |
| emission | infrared diffuse |
| line of sight type | axial |
| sensing range | > 0...0.3 m |
| detection system | diffuse |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.05 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | <= 10 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <1 V (closed state) |
| length | 48 mm |
| cable outer diameter | 3.5 mm |
| enclosure material | nickel plated brass |
| maximum delay response | 0.25 ms |
| switching frequency | <= 2000 Hz |
| maximum delay recovery | 0.25 ms |
| maximum delay first up | 20 ms |
| wire insulation material | PvR |
| cable composition | 3 x 0.14 mm² |
| diameter | 8 mm |
| status LED | 1 LED (yellow) for output state |
| lens material | PMMA |
| setting-up | without sensitivity adjustment |
| maximum sensing distance | 0.06 m |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| add on output | without |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -30-70 °C |
| Certifikati izdelkov | CE cULus |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
