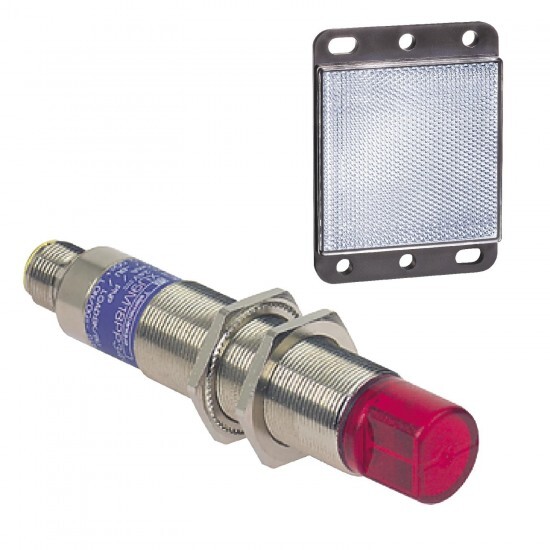

XU9M18MB230WK Schneider
XU9M18MB230WK Schneider
Opis
photo-electric sensor - XU9 - polarised - 90° - Sn 2m - 24..240VAC/DC - 1/2"
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | cylindrical M18 |
| series name | general purpose single mode |
| electrical connection | 1 male connector 1/2"20 UNF, 3 pins |
| product specific application | - |
| discrete output function | 1 NC |
| type of output signal | discrete |
| sensor name | XU9 |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 2-2 m polarised reflex need reflector XUZC50 |
| emission | red polarised reflex |
| line of sight type | 90° lateral |
| sensing range | > 1...5 m |
| detection system | polarised reflex |
| supply circuit type | AC/DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.09 kg 0.095 kg |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Omejitve napajalne napetosti | 20-264 V AC/DC |
| maximum voltage drop | <6 V (closed state) |
| length | 97 mm |
| enclosure material | nickel plated brass |
| maximum delay response | 20 ms |
| maximum residual current | 1.5 mA open state |
| switching frequency | <= 25 Hz |
| maximum delay recovery | 20 ms |
| maximum delay first up | 300 ms |
| wire insulation material | PvR |
| diameter | 18 mm |
| status LED | 1 LED (yellow) for output state 1 LED (red) for instability |
| lens material | PMMA |
| setting-up | sensitivity adjustment |
| maximum sensing distance | 3 m |
| switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| output type | solid state |
| add on output | without |
| kit composition | reflector XUZC50 sensor |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP67 double insulation conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL CE CSA |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
